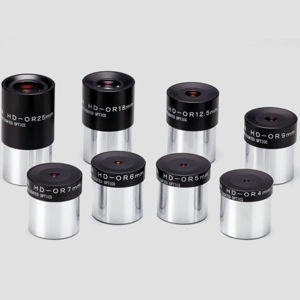

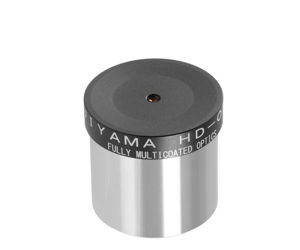

Kokusai Kohki continues the tradition of offering the highest quality Japanese made Orthoscopic eyepieces with the introduction of their brand new FUJIYAMA HD-OR eyepiece lineup. Fujiyama HD-ORs are hand crafted at the Tokyo factory, and individually inspected by the manufacturer before shipping.

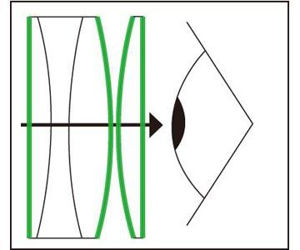

The classical orthoscopic eyepiece according to Abbe consists of a singlet eye lens and a cemented triplet as field lens. It is very well corrected and offers very high sharpness and ultimately high contrast. Colour fringes do not appear.Named after the Japanese name for that sky reaching symbol of Japan, Mt. Fuji, the FUJIYAMA HD-ORs come standard with multicoatings on all four air to glass surfaces, giving them extended light throughput, and brighter images overall, as compared to our previous OR eyepiece lineup. And all lenses are edge blackened to reduce internal light scatter and reflections to an absolute minimum. (And, for the record, cemented lens surfaces are UNcoated).
The entire Fujiyama lineup is parfocal, accepts standard 1.25" filters, and comes with plastic eyepiece caps. The chrome barrels of the Fujiyama HD-ORs are straight up and down, and we have removed the helpful, but also often annoying, safety groove.
Solid construction, bright, clean and sharp views throughout a fully corrected 42 degree FOV, with sharp field stops, makes the Fujiyamas perfect for every type of viewing, and are also an exellent match with high end apochromats for hard core planetary, lunar, solar and double star viewing.Each eyepiece carries a one year Kokusai Kohki parts and labor warranty.
Note: **Year-end sale: Fujiyama Ortho eyepieces at special prices**
Take the opportunity until the end of the year! We are clearing our stock of Fujiyama eyepieces and are offering the last remaining eyepieces at attractive prices. Available are eyepieces with focal lengths of 4mm, 5mm, 7mm and 12.5mm. Take advantage now and expand your astronomical equipment!
Scope of Delivery:
- Eyepiece
- plastic dust caps
Products specifications
Coating
|
Multicoated |
Barrel size / Filter thread
|
1 1/4" with filterthread |
Field of view
|
42° |
Parfocal with
|
all eyepieces parfocal |
Focal length
|
4 mm |
Eye relief
|
3.4 mm |
Field stop
|
2.6mm |
Weight
|
60g |
Type of eyepiece
|
Klassische orthoskopische Okular nach Abbe |
