photo tripod & accessories

Tripod with crankle column Stativ mit Moduleinsatz Kurbelsäule Länge der Mittelsäule: 50 cm Verstellweg: 41 cm Befestigungsgewinde: 3/8" Der leichte Schenkelkopf aus Magnesium ist gleichzeitig die Modulbasis für 10 verschiedene Einsätze. Es ist jederzeit möglich, den Moduleinsatz wahlweise mittels Spezialschlüssel (wird bei Lieferung des Wechselmoduls beigelegt) zu wechseln. Die Fixierung im Konus gewährleistet eine formschlüssige, spielfreie Verbindung der Komponenten. Mit dem neuen Anschlagsystem können Spreizwinkel bei ca. 20°, 40°, 60°, 80° und 100° mittels Flügelraster eingestellt werden. Das Anschlagsystem ist so ausgelegt, dass die angegebenen Belastungen der Stative auch bei maximaler Spreizung der Stativbeine gewährleistet ist. Das Stativ Report 322/K ist mit Moduleinsatz 2K ausgestattet, d.h. mit einer 50 cm langen Kurbelmttelsäule, Durchmesser 25 mm x 3 mm aus präzisionsgezogenerm Leichtmetallrohr, so daß eine bequeme Höhenverstellung möglich ist. Der Auflageteller aus Aluminium hat einen Durchmesser von 68 mm und ist mit einer feststehenden Befestigungsschraube 3/8" sowie drei Sicherungsschrauben gegen unbeabsichtigtes Lösen der montierten Technik versehen. Die angegebene Maximalhöhe ist gemessen mit ausgezogener Mittelsäule. Zweifacher Stativbeinauszug.

Like models 723 except that centre column has a non-removable rotating panorama plate. Especially suitable for ball heads without a built-in rotation plate. Double leg extension.

The tripod Report 733 is equipped with the module insert 3, i.e. with a permanently installed levelling ball, a diameter of 55 mm and a spirit level. This enables a quick and precise adjustment of the tripod. The pivoting range is 30° in all directions. The fastening screw is spring-loaded. Place your tilt head or your camera down and fasten it from below by means of the star knob screw. This module insert is particularly suitable for heavy equipment, because the integrated ball partly allows the work without additional tilt head. The lens or the camera is fastened directly on the tripod. Since there is only one connection between the tripod and the camera, this is the most stable and the safest method. Double tripod leg extension. The light magnesium mounting head serves as module basis for 14 different inserts. The module insert can be changed at all times using a special wrench (included in the delivery of the changing module). The fixation in the cone ensures a positive-locking, clearance-free connection of the components. Thanks to the stop system, it is possible to set angles of spread at approx. 20°, 40°, 60°, 80° and 100° by means of a wing catch. The stop system is designed in such a way that the specified loads of the tripods are also guaranteed at a maximum inclination of the tripod legs.

THE NEW MODULAR REPORT TRIPOD SYSTEM The light magnesium mounting head serves as module basis for 10 different inserts. The module insert can be changed at all times using a special wrench (included in the delivery of the changing module). The fixation in the cone ensures a positive-locking, clearance-free connection of the components. Thanks to the new stop system, it is possible to set angles of spread at approx. 20°, 40°, 60°, 80° and 100° by means of a wing catch. The stop system is designed in such a way that the specified loads of the tripods are also guaranteed at a maximum inclination of the tripod legs. The tripod Report 733/P is equipped with the module insert 3/P, i.e. with a permanently installed levelling ball, a diameter of 55 mm ,spirit level and an integr. panorama plate. This enables a quick and precise adjustment of the tripod. The pivoting range is 30° in all directions. The fastening screw is spring-loaded. Place your tilt head or your camera down and fasten it from below by means of the star knob screw. This module insert is particularly suitable for heavy equipment, because the integrated ball partly allows the work without additional tilt head. The lens or the camera is fastened directly on the tripod. Since there is only one connection between the tripod and the camera, this is the most stable and the safest method. Double tripod leg extension.

The tripod Report 743 is equipped with the module insert 4, i.e. with a centre column which has a length of 50 cm and a diameter of 25 mm, made of precision-drawn light-metal tubing, and a levelling ball. The centre column is additionally equipped with a rotating panorama plate. By means of the centre column, the levelling ball can be tilted by 30° in all directions. The support plate made of aluminium has a diameter of 68 mm and is equipped with a fixed fastening screw (size to be selected) as well as three locking screws which secure the mounted system against unintentional loosening. The spirit level ensures a quick and precise adjustment. When using an extra-short centre column (10 cm), it is possible to work near ground level. Double tripod leg extension. The specified maximum height applies if the centre column with a length of 50 cm is extended. The light magnesium mounting head serves as module basis for 14 different inserts. The module insert can be changed at all times using a special wrench (included in the delivery of the changing module). The fixation in the cone ensures a positive-locking, clearance-free connection of the components. Thanks to the stop system, it is possible to set angles of spread at approx. 20°, 40°, 60°, 80° and 100° by means of a wing catch. The stop system is designed in such a way that the specified loads of the tripods are also guaranteed at a maximum inclination of the tripod legs.

The tripod Report 743/K is equipped with the module insert 4K, i.e. with a crank centre column which has a length of 50 cm and a diameter of 25 mm, made of precision-drawn light-metal tubing, and a levelling ball. The centre column is additionally equipped with a rotating panorama plate. By means of the centre column, the levelling ball can be tilted by 30° in all directions. The support plate made of aluminium has a diameter of 68 mm and is equipped with a fixed fastening screw (size to be selected) as well as three locking screws which secure the mounted system against unintentional loosening. The spirit level ensures a quick and precise adjustment. Double tripod leg extension. The specified maximum height applies if the centre column with a length of 50 cm is extended. The light magnesium mounting head serves as module basis for 14 different inserts. The module insert can be changed at all times using a special wrench (included in the delivery of the changing module). The fixation in the cone ensures a positive-locking, clearance-free connection of the components. Thanks to the stop system, it is possible to set angles of spread at approx. 20°, 40°, 60°, 80° and 100° by means of a wing catch. The stop system is designed in such a way that the specified loads of the tripods are also guaranteed at a maximum inclination of the tripod legs.

Like tripod Report 7043 except that centre column has a non-removable rotating panorama plate. Especially suitable for ball heads without a built-in rotation plate. These are top-of-the-line tripods that deliver perfect results in any conditions. For many work assignments there is no need to use a tripod head. Extremely convenient when working on uneven ground. Double leg extension.

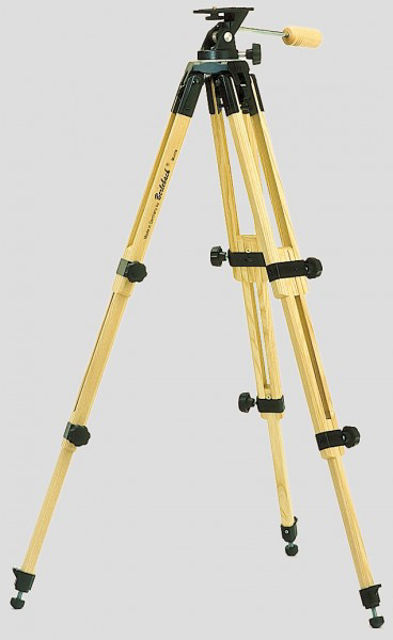

Mounting head with permanent 2 D pan/tilt attachment. The pan/tilt attachment being firmly mounted on the tripod provides outstanding stability. Photo head model 520 width sliding camera teaining screw. Double leg extension.

Mounting head with permanent 2 D pan/tilt attachment. The pan/tilt attachment being firmly mounted on the tripod provides outstanding stability. Video head model 520 Video with spring-loaded video-pin. Double leg extension.

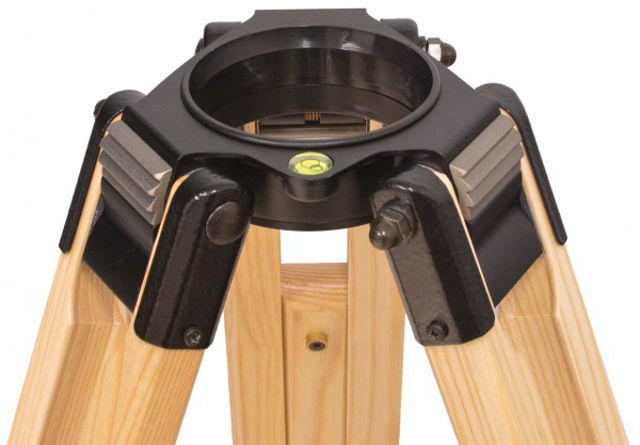

The tripod Report 763 is equipped with the module insert 6, i.e. with a half ball with a diameter of 75 mm for the direct insertion of professional video tilt heads or a levelling unit (available as an accessory). The half ball ensures a pivoting range of 15° in all directions which leads to a quick and precise tripod adjustment. The levelling unit is fastened my means of the 80-mm wooden handle or the star knob. Double tripod leg extension. The light magnesium mounting head serves as module basis for 14 different inserts. The module insert can be changed at all times using a special wrench (included in the delivery of the changing module). The fixation in the cone ensures a positive-locking, clearance-free connection of the components. Thanks to the stop system, it is possible to set angles of spread at approx. 20°, 40°, 60°, 80° and 100° by means of a wing catch. The stop system is designed in such a way that the specified loads of the tripods are also guaranteed at a maximum inclination of the tripod legs.

The tripod Report 803 is equipped with the module insert 0 and is thus the simplest and cheapest tripod version. The support area has a diameter of 60 mm and is equipped with a fixed fastening screw (size to be selected). In combination with our tripod heads, it can be used for various applications and is particularly suitable for near-ground-level work. Double tripod leg extension. The light magnesium mounting head serves as module basis for 14 different inserts. The module insert can be changed at all times using a special wrench (included in the delivery of the changing module). The fixation in the cone ensures a positive-locking, clearance-free connection of the components. Thanks to the stop system, it is possible to set angles of spread at approx. 20°, 40°, 60°, 80° and 100° by means of a wing catch. The stop system is designed in such a way that the specified loads of the tripods are also guaranteed at a maximum inclination of the tripod legs.

The tripod Report 813 is equipped with the module insert 1. The support area has a diameter of 60 mm and is equipped with a spring-loaded fastening screw (size to be selected). This module insert is designed for the assembly of heavy tripod heads and devices. They are placed down and securely fixed from below using the star knob screw. Double tripod leg extension. The light magnesium mounting head serves as module basis for 14 different inserts. The module insert can be changed at all times using a special wrench (included in the delivery of the changing module). The fixation in the cone ensures a positive-locking, clearance-free connection of the components. Thanks to the stop system, it is possible to set angles of spread at approx. 20°, 40°, 60°, 80° and 100° by means of a wing catch. The stop system is designed in such a way that the specified loads of the tripods are also guaranteed at a maximum inclination of the tripod legs.
