CMOS & CCD Cameras

Cooled USB 3.0 medium format monochrome camera with powerful 44x33 mm sensor for ultimate class astrophotography

• Powerful, regulated Peltier cooling up to 35 °C below ambient temperature
• Medium format sensor Sony IMX461 (44x33 mm) with 100 megapixels
• High resolution due to 3.76 µm pixels
• Peak quantum efficiency 91%!
• 16 bit ADC - dynamic range like a CCD sensor for more gradations
• No more disturbing amplifier glow (amp glow)
• Anti-Dew heating already built in
• Working distance only 22.5 mm from M68 female thread
• With only 910 grams a lightweight for its size - does not stress the focuser much
• USB 3.0 for fast data transfer
• DDR3 buffer for stable data transfer

Touptek CMOS camera SkyEye62AC/AM
Powerful CMOS camera for DeepSky photography

• Sony CMOS IMX455 chip
• Full frame format
• 60 mill. pixels
• 16 bit ADC
• 512 MB DDR3 RAM
• USB3/USB2
• Cooling -35°
• 6.3 frames/sec doenload/image at full resolution
• QE >80%
• Available as monochrome or colour version

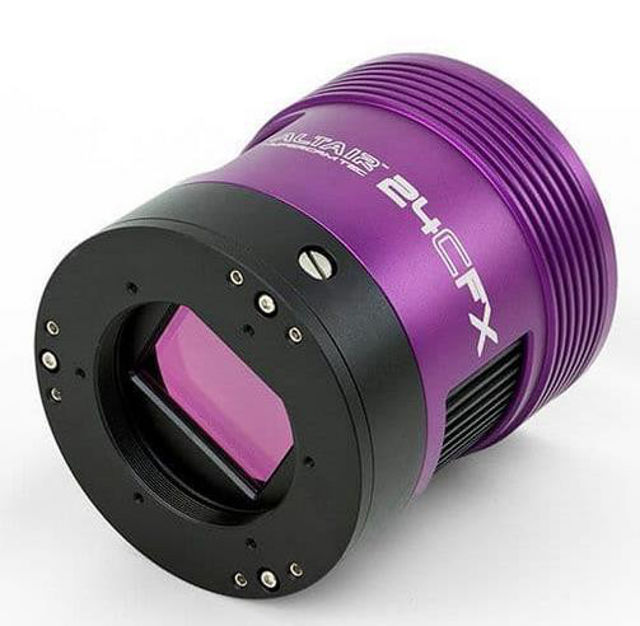

• Full-frame color sensor Sony IMX410 - back-illuminated
• 24 x 36 mm - diagonal 43.3 mm
• 24 MP - 6064 x 4040 pixels
• Pixel size 5.94 µm - can be used on almost all telescopes
• 14 bit ADC - dynamic range like a CCD sensor
• No amplifier glow due to Zero Ampglow circuitry
• Built-in UV/IR blocking filter as protection glass
• Heater installed to prevent condensation - Sensor chamber is sealed airtight
• 512 MB DDR3 buffer for stable data transmission
• M54x0.75 connection thread (female)
• Back focus 17.5 mm (distance sensor to thread)
• Binning is supported
• Manufacturer of the camera is Touptek

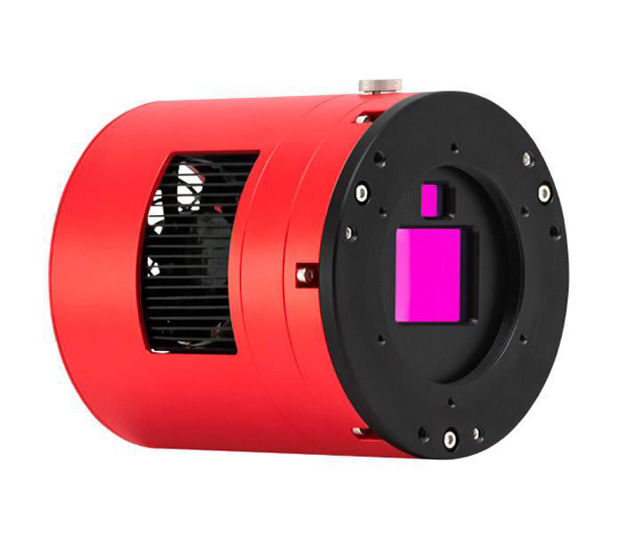

Cooled USB 3.0 astro camera with Sony IMX571 color sensor AND guiding sensor in one housing

• Imaging and guiding with only one telescope - without off-axis guider - due to the integrated guiding sensor
• Highly sensitive guiding sensor
• Powerful Peltier cooling
• Sony IMX571 APS-C format color sensor - back-illuminated
• High resolution due to 3.76 µm pixels
• 16 bit ADC - dynamic range like a CCD sensor
• Anti-dew heater already installed
• No amplifier glow
• Telescope side connection: M54x0.75 female thread
• Working distance only 17.5 mm from the internal thread
• Telescope and mount in the third picture are for illustration only and not included.

Cooled USB3.0 COLOR PRO astro camera for deep-sky photography. High-resolution SONY CMOS sensor with 16 megapixels.

• Powerful Peltier cooling up to 40 °C below ambient
• Sensor: SONY IMX071 CMOS sensor with 28.4 mm diagonal (APS-C format)
• Pixels: 4.78 µm pixel size - 4944 x 3284 pixels
• Short download time - USB 3.0 (can also be used with USB 2.0
• 2x USB 2.0 outputs (connectors identical to ASI1600 cooled cameras)
• Rolling shutter
• Protective AR window built-in - full transmission even in infrared
• Telescope connection: T2 - M42x0.75 female thread and 2" throug the both extension rings
  Separately screwed front panel - now the camera body cannot be unscrewed by mistake
• DDR memory buffer 256 MB for more stable data exchange - minimizes amp glow even with USB2.0 characteristic feature of the new PRO versions)
• No problems with dew or icing through integrated heating

ATR432C features a resolution of 1600x1100 pixels, 9 ?m pixels and a 1.1-inch optical format.It offers support for high frame rate mode(109FPS at all Pixel Readout 12 bit),and has a readout noise level as low as 2.4e. Additionally ,the camera have an excellent TEC cooling system maintains precise temperature control within a deviation of 0.1?, while the dew prevention heater (window heating) further enhances performance.

ATR432C features a resolution of 1600x1100 pixels, 9 ?m pixels and a 1.1-inch optical format.It offers support for high frame rate mode(109FPS at all Pixel Readout 12 bit),and has a readout noise level as low as 2.4e. Additionally ,the camera have an excellent TEC cooling system maintains precise temperature control within a deviation of 0.1?, while the dew prevention heater (window heating) further enhances performance.

• 9-megapixel Sony IMX533 back-illuminated sensor with 16mm diagonal
• 14bit ADC delivers 16,384 grey levels in the image
• Zero Amp Glow even at 10 minutes exposure
• Special Ultra Low Read Noise mode
• True hardware binning
• 2 stage TEC cooling
• Heated optical window
• 2 year warranty, with no sensor freeze guarantee**.
• USB3.0/USB2.0 connection with rear USB2.0 hub (2x ports)
• 12V power is required to operate this camera.
• Armoured case included
• Supplied basic 240~110v compatible 12v DC power supply with choice of UK, USA or EU plug
• Software & drivers downloadable from www.altairastro.help
