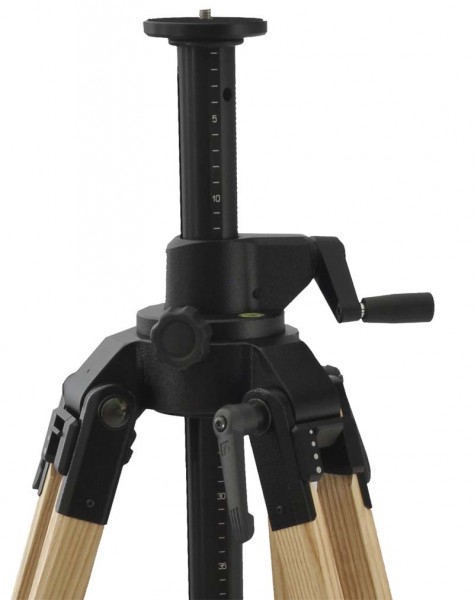

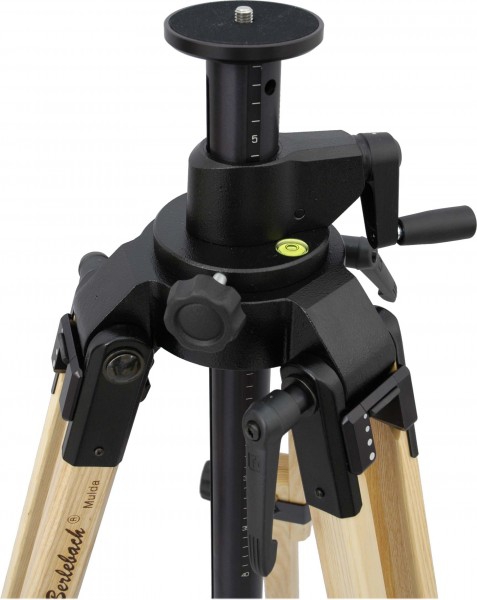

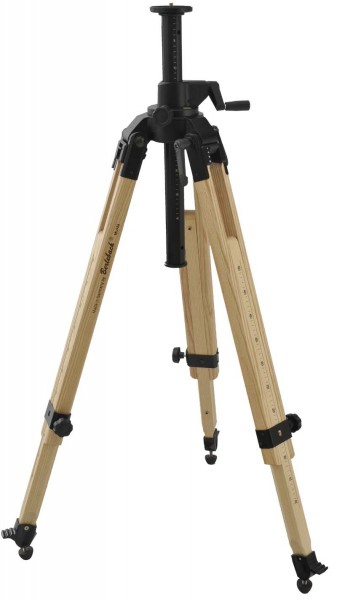

Light-metal mounting head with geared centre column and circular bubble. Centre column length is 50 cm (39 cm adjustment range). Helical gearing on the centre column acts as an automatic column brake. Mounting plate diameter is 89 mm. With leg spread stops at 20°, 35°, 55° and 80°. The maximum height given below are that at an 20° leg spread and with the centre column fully extended.
Products specifications
|
vibration_damping
|
extremely good |
|
minimum height
|
53 cm |
|
load capacity
|
20.00 kg |
|
transportation length
|
97 cm |
|
maximum height
|
179 cm |
