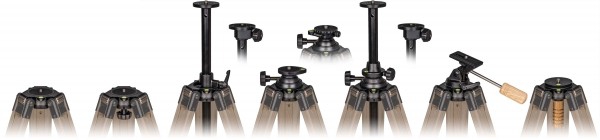

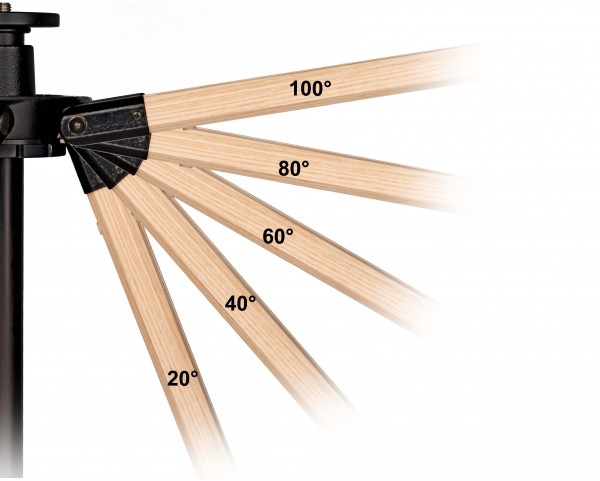

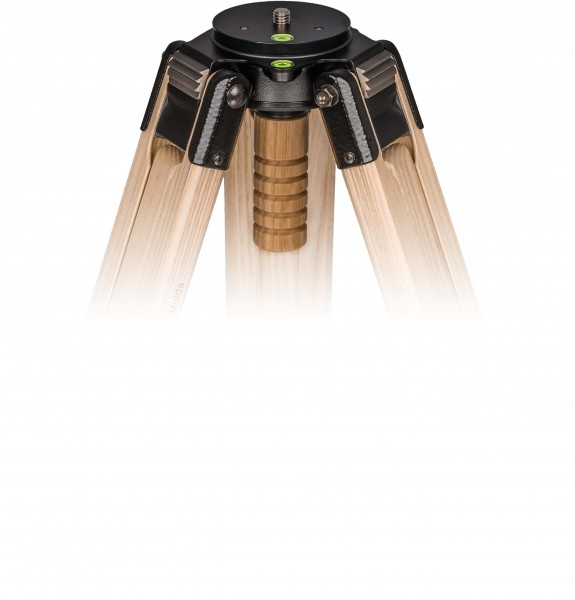

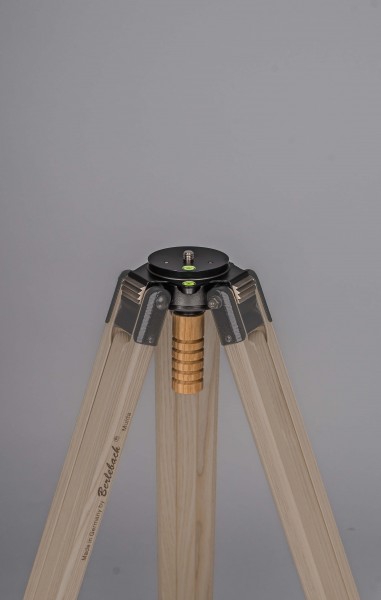

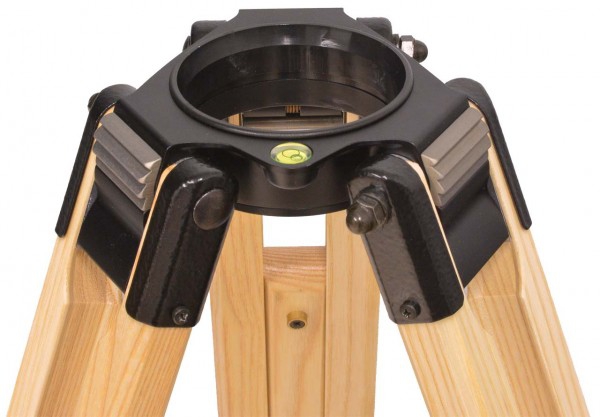

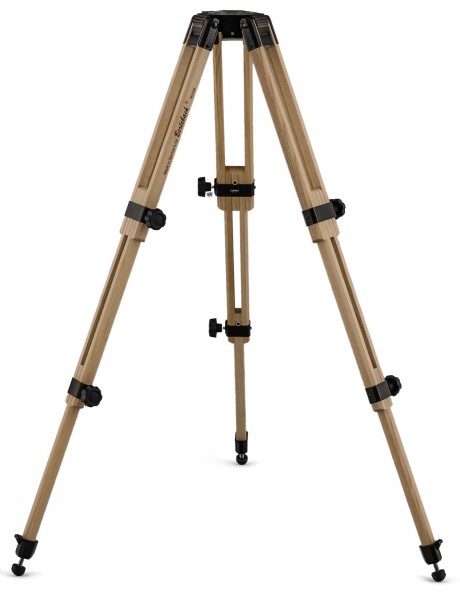

The tripod Report 763 is equipped with the module insert 6, i.e. with a half ball with a diameter of 75 mm for the direct insertion of professional video tilt heads or a levelling unit (available as an accessory). The half ball ensures a pivoting range of 15° in all directions which leads to a quick and precise tripod adjustment. The levelling unit is fastened my means of the 80-mm wooden handle or the star knob. Double tripod leg extension. The light magnesium mounting head serves as module basis for 14 different inserts. The module insert can be changed at all times using a special wrench (included in the delivery of the changing module). The fixation in the cone ensures a positive-locking, clearance-free connection of the components. Thanks to the stop system, it is possible to set angles of spread at approx. 20°, 40°, 60°, 80° and 100° by means of a wing catch. The stop system is designed in such a way that the specified loads of the tripods are also guaranteed at a maximum inclination of the tripod legs.
Products specifications
minimum height | 13 cm |
load capacity | 12.00 kg |
vibration_damping | good |
transportation length | 49 cm |
maximum height | 87 cm |
