Berlebach Tripod Report 703

Berlebach Tripod Report 703

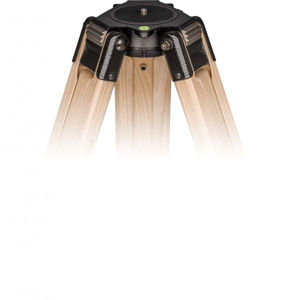

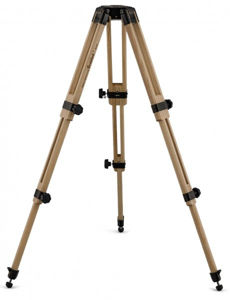

The tripod Report 703 is equipped with the module insert 0 and is thus the simplest and cheapest tripod version. The support area has a diameter of 60 mm and is equipped with a fixed fastening screw (size to be selected). In combination with our tripod heads, it can be used for various applications and is particularly suitable for near-ground-level work. Double tripod leg extension. The light magnesium mounting head serves as module basis for 14 different inserts. The module insert can be changed at all times using a special wrench (included in the delivery of the changing module). The fixation in the cone ensures a positive-locking, clearance-free connection of the components. Thanks to the stop system, it is possible to set angles of spread at approx. 20°, 40°, 60°, 80° and 100° by means of a wing catch. The stop system is designed in such a way that the specified loads of the tripods are also guaranteed at a maximum inclination of the tripod legs.
Manufacturer : Berlebach
SKU : BE4-22000
Price: 223.00 € incl tax 19% (Germany)
248.00 €
Estimated delivery time : 2-3 days
Product description
The tripod Report 703 is equipped with the module insert 0 and is thus the simplest and cheapest tripod version. The support area has a diameter of 60 mm and is equipped with a fixed fastening screw (size to be selected). In combination with our tripod heads, it can be used for various applications and is particularly suitable for near-ground-level work. Double tripod leg extension. The light magnesium mounting head serves as module basis for 14 different inserts. The module insert can be changed at all times using a special wrench (included in the delivery of the changing module). The fixation in the cone ensures a positive-locking, clearance-free connection of the components. Thanks to the stop system, it is possible to set angles of spread at approx. 20°, 40°, 60°, 80° and 100° by means of a wing catch. The stop system is designed in such a way that the specified loads of the tripods are also guaranteed at a maximum inclination of the tripod legs.
Products specifications
load capacity12.00 kg
vibration_dampinggood
maximum height87 cm
minimum height4 cm
transportation length48 cm
