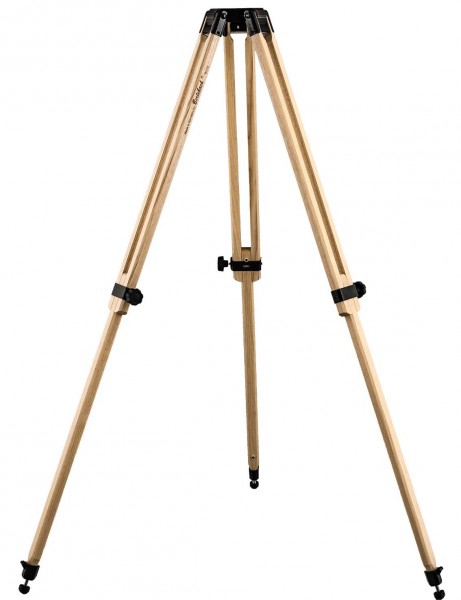

Berlebach Tripod Report 232

Berlebach Tripod Report 232

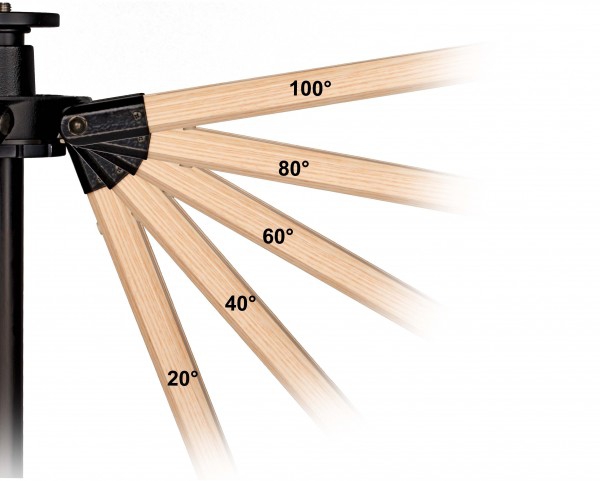

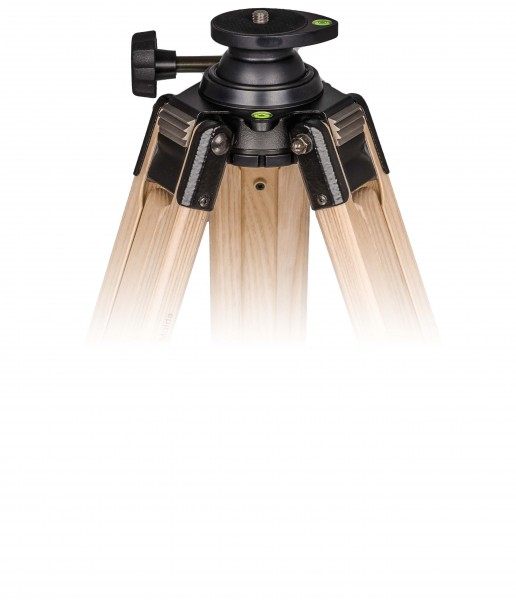

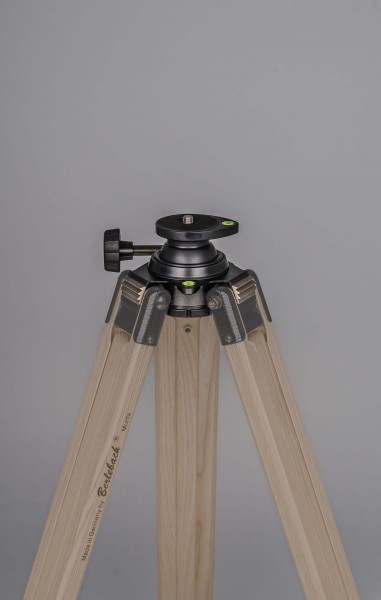

The tripod Report 232 is equipped with the module insert 3, i.e. with a permanently installed levelling ball, a diameter of 55 mm and a spirit level. This enables a quick and precise adjustment of the tripod. The pivoting range is 30° in all directions. The fastening screw is spring-loaded. Place your tilt head or your camera down and fasten it from below by means of the star knob screw. This module insert is particularly suitable for heavy equipment, because the integrated ball partly allows the work without additional tilt head. The lens or the camera is fastened directly on the tripod. Since there is only one connection between the tripod and the camera, this is the most stable and the safest method. Single tripod leg extension. The light magnesium mounting head serves as module basis for 14 different inserts. The module insert can be changed at all times using a special wrench (included in the delivery of the changing module). The fixation in the cone ensures a positive-locking, clearance-free connection of the components. Thanks to the new stop system, it is possible to set angles of spread at approx. 20°, 40°, 60°, 80° and 100° by means of a wing catch. The stop system is designed in such a way that the specified loads of the tripods are also guaranteed at a maximum inclination of the tripod legs.
Manufacturer : Berlebach
SKU : BE4-12031
Price: 309.00 € incl tax 19% (Germany)
Estimated delivery time : 2-3 days
Product description
The tripod Report 232 is equipped with the module insert 3, i.e. with a permanently installed levelling ball, a diameter of 55 mm and a spirit level. This enables a quick and precise adjustment of the tripod. The pivoting range is 30° in all directions. The fastening screw is spring-loaded. Place your tilt head or your camera down and fasten it from below by means of the star knob screw. This module insert is particularly suitable for heavy equipment, because the integrated ball partly allows the work without additional tilt head. The lens or the camera is fastened directly on the tripod. Since there is only one connection between the tripod and the camera, this is the most stable and the safest method. Single tripod leg extension. The light magnesium mounting head serves as module basis for 14 different inserts. The module insert can be changed at all times using a special wrench (included in the delivery of the changing module). The fixation in the cone ensures a positive-locking, clearance-free connection of the components. Thanks to the new stop system, it is possible to set angles of spread at approx. 20°, 40°, 60°, 80° and 100° by means of a wing catch. The stop system is designed in such a way that the specified loads of the tripods are also guaranteed at a maximum inclination of the tripod legs.
Products specifications
vibration_dampingvery good
load capacity15.00 kg
minimum height8 cm
transportation length76 cm
maximum height118 cm
