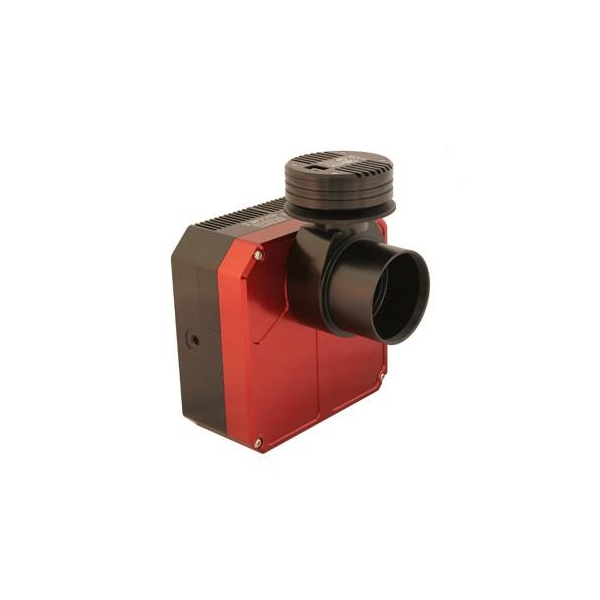

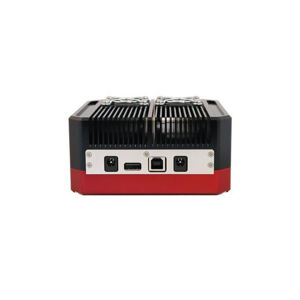

ATIK ONE 6.0 CCD Camera with internal filter wheel - COMBO package
... CCD Camera , Off Axis Guider body , GP Autoguider
... Sony ICX 694 Sensor with Anti Blooming
For a limited time, you can get the Atik One with the Atik GP, plus an off-axis guider for an unbelievable price!
But it's not just any off-axis guider. It's a smaller version of ATIKs bigger OAG, with the renowed smooth focusing system and moveable prism. A sturdy, reliable unit.
Camera Infos:
Integrated and powerful. The Atik One series embodies Atik's principles bringing you a high performance, simple to use platform, with internal filter wheel, all in a very compact and light package. It features an improved cooler, capable of reaching a stable -38C below ambient, and a new CCD chamber design, filled with high purity Argon, for a dry, condensation free environment and optimal thermal insulation.

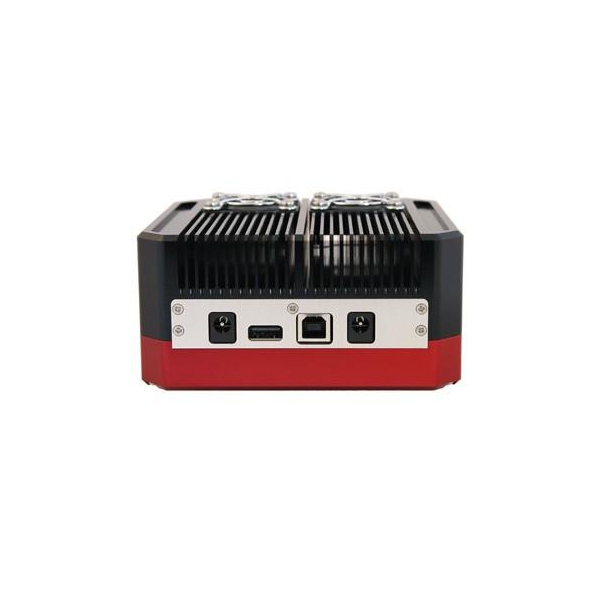

Convenience of use has been key during the design. The Atik One also features an internal USB hub and accessory power port, so that you can keep the cable clutter under control. Only 2 cables for your imaging gear! In addition to this, two 1/4” tripod mounting holes are available, to give you more options for mounting the camera, other accessories, or for managing the cables.
The 5 position integrated filter wheel for 1.25" filters features a mechanical roller for filter location ensuring the highest levels of reproducibility image after image. The filter wheel is natively controlled from our software or has an Ascom driver for 3rd party programs. To make filter changing less of a chore the camera comes with a tool to allow filters to be loaded without opening the camera.
The Atik One ships with the acclaimed Artemis Capture software, capable of providing camera control, autoguiding and sequencing. And as an Atik camera owner, all future upgrades to the software will be totally free!
What's included in the box?
Atik One camera body
Atik GP camera body
Off-axis guider body
2" adapter
0.5m mini-USB cable
3m USB cable
1.8m battery power connector
CD-ROM with drivers, software and user's manual (PDF)
Quickstart guide (paper).
ATIK highly-acclaimed Capture software is included for camera control and data acquisition, and plug-ins are included to allow use with Astroart and Maxim DL.
A universal (110-230V) power adapter is optional.
System requirements: Pentium IV PC with 512MB RAM, Windows XP/Vista/Win7/Win8, CD-ROM drive and USB 2.0 port.

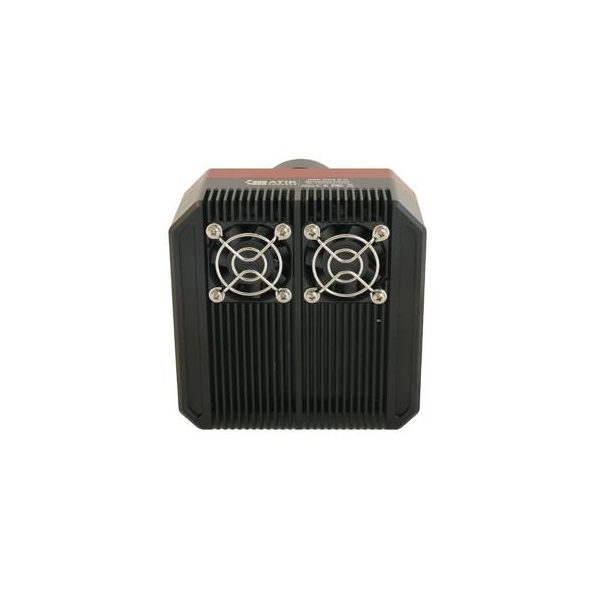

two vans for effective cooling
Connection Canon EOS Objectives to ATIK ONE:
You can use your Canon EOS Lenses also with the ATIK ONE. You only need:
TSEOS-T2s ... Adapter for your EOS lens to T2 with female EOS Bajonet
TST2V5 ... 5mm T2 extension ring
... there is no space for the off axis guider when you use a EOS lens, than you must track with a guiding scope.
Specifications:
Sensor Type: CCD - Sony ICX694
Horizontal Resolution: 2750 pixels
Vertical Resolution: 2200 pixels
Pixel Size: 4.54 µM x 4.54 µM
ADC: 16 bit
Readout Noise: 5e- typical value
Interface: USB 2.0 High Speed, with embedded hub
Power: 12v DC 2A
Maximum Exposure Length: Unlimited
Minimum Exposure Length: 1/1000 s
Cooling: Termoelectric set point with max ΔT=-38°C
Weight: approx. 900 gr
Backfocus Camera + directly attached OAG: 47mm
Connection to correctors or flattener:
-- Connections to correctors with M48 thread: Article TSM48-T2
-- Connections to correctors with T2 and 55mm working distance: Article TST2V3 - the male threads of the correctors are longer (4mm) so you will have the right distance automatically.
