Atik Off Axis Guider with M54 and 2" connection for big camera sensors

Atik Off Axis Guider with M54 and 2" connection for big camera sensors

Atik Off Axis Guider with M54 and 2" connection for big camera sensors..
Manufacturer : ATiK Instuments
SKU : TSO-Atik OAG
Price: 266.00 € incl tax 19% (Germany)
Estimated delivery time : 1-4 days
Product description

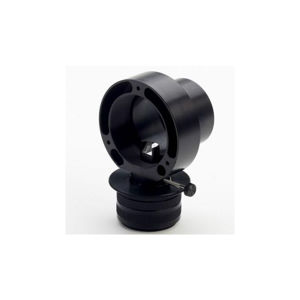

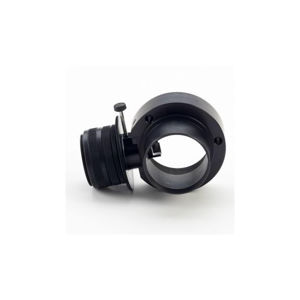

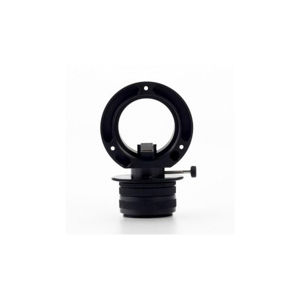

Atik Off Axis Guider with M54 and 2" connection for big camera sensors
... high end off axis guider - perfect for ATIK filterwheel EFW2



-- The Atik Off Axis Guider is a complete system.
-- Features a moving prism to help you select the perfect star for your guiding needs.
-- The Atik Off Axis Guider has the capabilities of using sensor sizes up to 35mm.

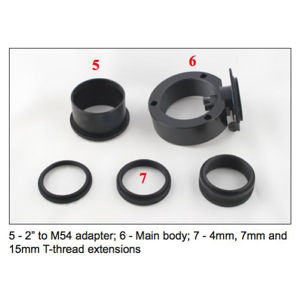

-- Features a precise fine-focusing system with 3 varied lengths of extension rings.
-- The Atik Off Axis Guider allows focal reach for a broad range of cameras.
-- Design features a clear aperture of 54mm and weighs about 180 grams.

The ATIK Off Axis Guider is designed for the ATIK filterwhell EFW2 but yu also can use the OAG without the filterwheel with adapters from us.

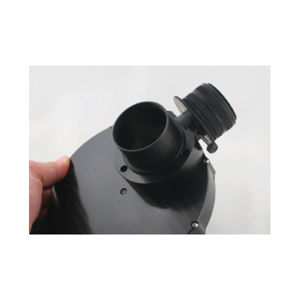

Connection to the EFW2:

-- Unscrew the 3 grub screws that cover the holes on the EFW2 front cover
-- Align the OAG with the 3 holes and attach it usig the 3 supplied screws

Connection to the telescope:

-- A 2" adaptor is included but you also can adapt the OAG to the T2 or M48 thread using our optional adapters.

Focusing the OAG:

One of the great features of the ATIK OAG is the extremely smooth and flexibe focus mechanism. First make a good sharpness of the primary camera through the focuser of the telescope. Than connect the Autoguider to the side connection and sharp it through the focus mechanism.

Technical informations:

-- free aperture ... 54mm
-- connection on the telescope site ... M54 female thread and 2" barrel
-- lengh without 2" barrel ... 24,1mm
-- connection on the camera site ... 3 holes for the EFW2 filterwheel and M54 female thread



Optional Connections

Telescope connection to M48 - 2" filter male thread ... TSM48-M54
Telescope connection to T2 male thread . BA2958085

Camera Connections without EFW2 Filterwheel:

Connection to M48 2" Filterthread ... TSM48-M54 + M48a-M48a
Connection to T2 M42x0,75 thread ... BA2958085 + BA1508025


Products specifications
Unobstructed inner diameter 54mm
Connection to camera 3 holes for the EFW2 filterwheel and M54 female thread
Plug connection M54 female thread and 2" barrel
Total length 24.1mm without 2" barrel
