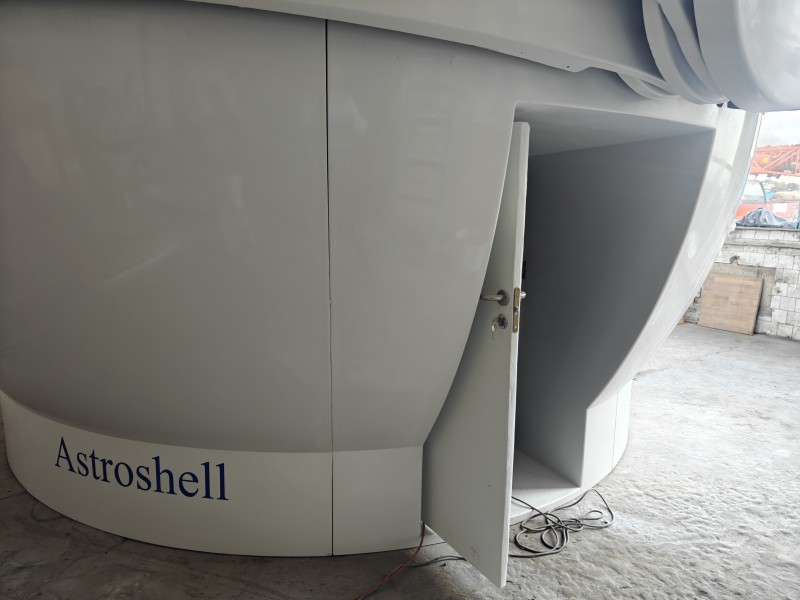

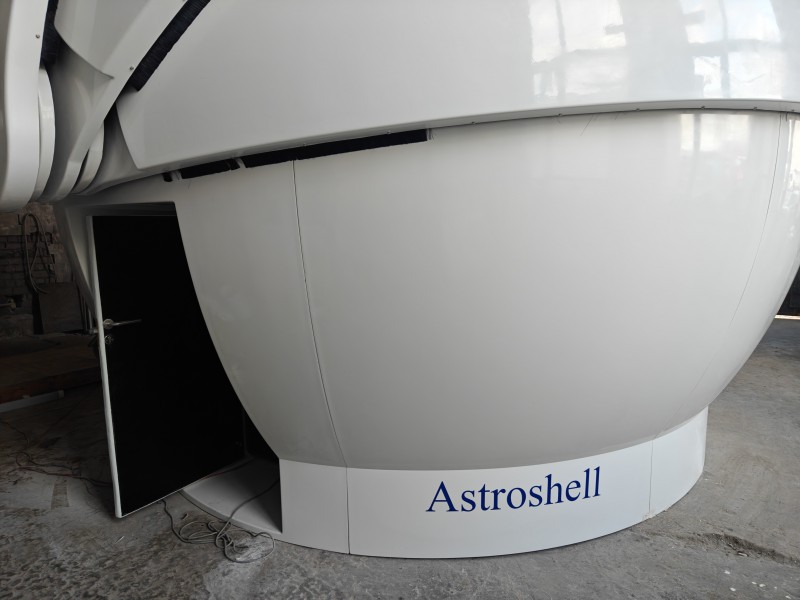

This 6.75m dome offers an unmatched, unrestricted 180/360-degree field of view. No hassle with synchronization.
The Clamshell dome is the preferred observatory dome for LASER COMMUNICATION and BIG-APERTURE telescopes. It is not necessary to synchronize the telescope with the dome. Both "shutters" can be moved and positioned independently to allow wind shading of the optical group.
All of our domes are equipped with rugged belt drive systems powered by high performance DC or AC motors and feature industrial grade gears. If you need fast dome opening, we offer a special fast opening shutter drive system.
Built up individually or in combined with the SRQ-200 DIMM station, our clamshell dome is the way to go for successful astronomy!

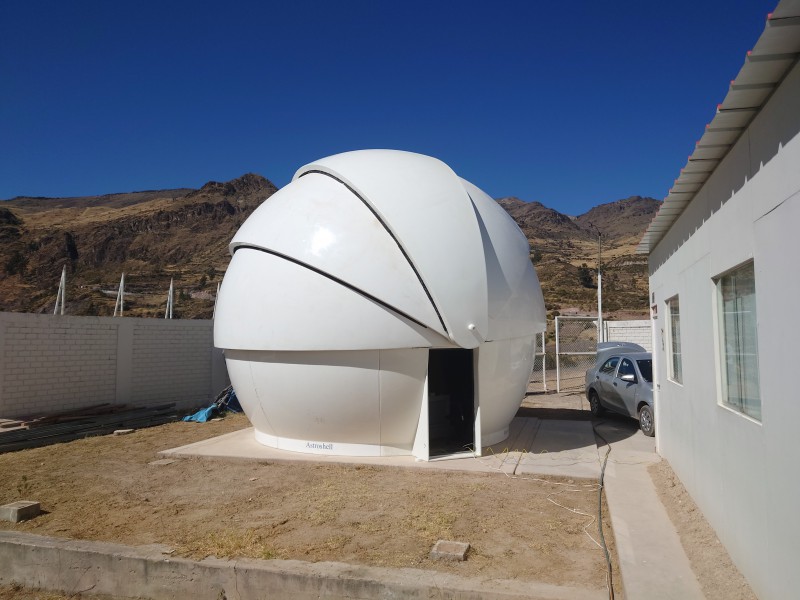

CLAMSHELL DOMES provide an unparalleled 360/180 degree field of view for an absolutely breathtaking nighttime experience. When this observatory dome opens, you are truly among the stars!

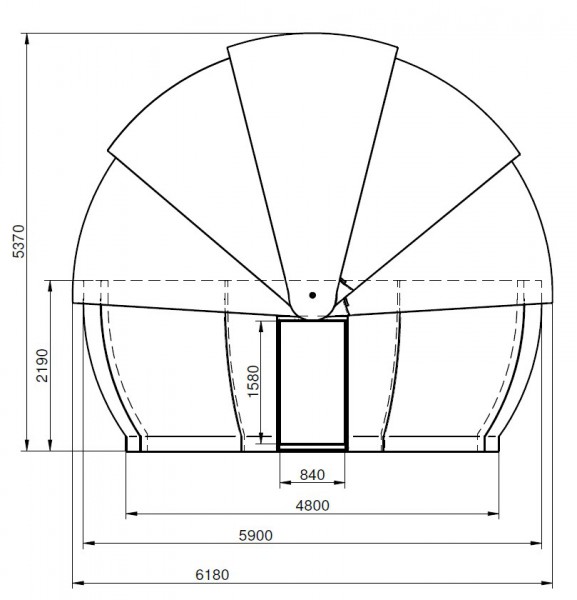

- Height, dome closed: 5370mm
- Shutters can be opened independently
- Double belt drive system
Scope of Delivery:
- Dome
- Motors
- Power Supply with Controller
Important: This item cannot be ordered online, but only by phone or written agreement. When placing the order, you will be sent a separate purchase contract. Transport costs will be charged separately (delivery truck) depending on the effort.
Products specifications
| Motorising | Motorizing of Dome Opening included |
| Motor Control | included |
| Powerconsumption | via Power Supply included |
| Connections | USB |
| Shutter | unparalleled 360/180 degree field |
| Height of dome - including Substructure | 5370mm |

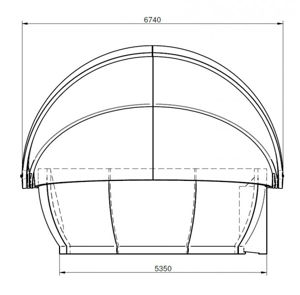

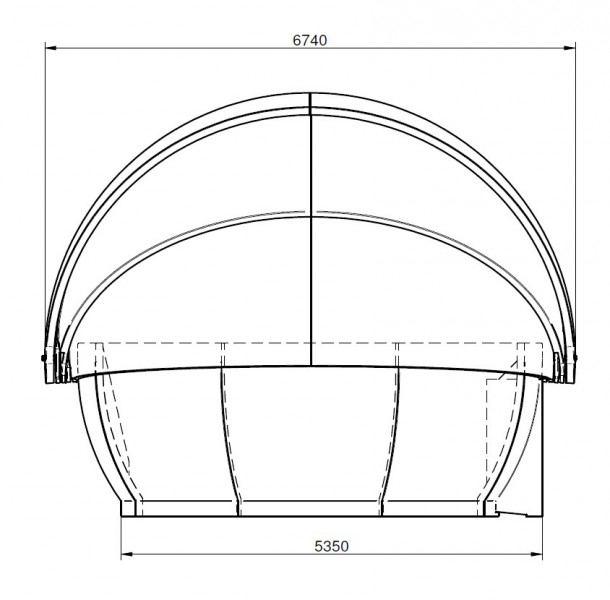

| Outer diameter of dome | 6750mm |
