Askar filter changer - the filter drawer that grows with your equipment
Adapting a filter drawer to the telescope and camera is often quite an extensive task. And as soon as the camera is changed or a new telescope with different filter sizes is used, the game starts all over again. With this multifunctional filter drawer, ASKAR offers a solution for all common telescope and camera connections as well as for all common filter sizes.

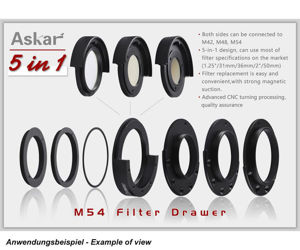

The multifunctional filter changer consists of:

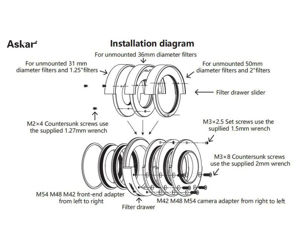

The base element to which the adapters on the camera and telescope sides are connected. This base element also accommodates the filter holders.
The filter holders with inserts for all common filter sizes. Three filter holders are supplied: one for 1.25" and 31 mm filters, one for 36 mm filters and one for 2" and 50 mm filters.
-
The telescope-side adapters with M42x0.75 (T2), M48x0.75 and M54x0.75 female thread
-
The adapters on the camera side with M42x0.75 (T2), M48x0.75 and M54x0.75 male thread
-
Suitable screws to fix the unmounted filters are also included.

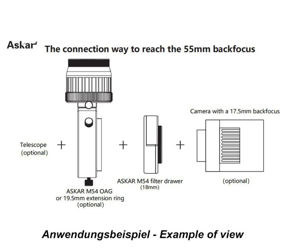

Application tip from Teleskop-Service - How to achieve 55 mm working distance:
If you want to integrate an off-axis guider, we recommend the # ASOAGM54. With a normal flange focal distance of your camera of 17.5 mm, you will achieve exactly the 55 mm working distance with the off-axis guider, the # ASFD filter drawer and your camera that many correctors require.
If you want to work without an off-axis guider, you can reach the 19.5 mm with suitable extension rings and tuning rings. The following is an example for correctors with M48x0.75 camera connection and for cameras with 17.5 mm flange focal distance (e.g. cooled ZWO or TS-Optics cameras):
-
M48tuning ring2 ... thickness 1.5 mm
-
TSVF210 ... thickness 10 mm
-
TSVF208 ... thickness 8 mm
Scope of Delivery:
- Filter changer consisting of 10 parts
- Screws for telescope and camera adapter
- Screws and retaining ring for unmounted filters
Products specifications
material
|
Aluminum |
loadable with
|
1,25" und 2" mounted, 31 mm, 36 mm and 50 mm anmounted |
Connection to camera
|
T2, M48 and M54 male |
Connection to telescope
|
T2, M48 and M54 female |
Height
|
optical way 18mm |
