Just a tad heavier than the 105 Apo, yet perfectly transportable, is our 115mm system (4.5") with a focal length of 805mm (f/7.0). Again, we use optics from the APM SuperED FPL 53 APO series, which is very harmoniously matched in terms of visual and photographic application.
10mm more aperture does not sound much, but already means an increased limiting magnitude as well as improved resolution, e.g. at the double star. The light collecting area is already about 30% larger than with 100mm optics!
The focal length of about 800mm is chosen very universally, with our 0.75x Riccardi-Reducer a CCD-friendly focal length of about 600mm can be achieved. For those who love planetary details, there are high quality Barlow systems to choose from, also solar observation is a pleasure with the appropriate accessories. Here, too, the Apo shows its full class in definition and contrast.

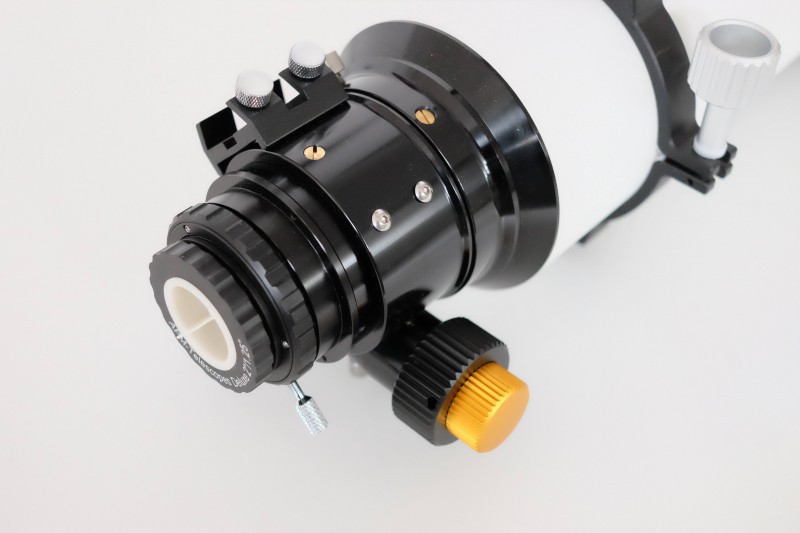

The instrument comes standard with 2.5" ZTA focuser (1:10 micro-reduced, 360° rotatable) as well as finder shoe, Vixen-level mounting rail and 2" - 1.25" connection adapter. The system is "ready to work". M63 and M68 female threads are also available.
With 7.6kg final weight, nothing stands in the way of the astro safari!
Features:- Very high quality Triplet SuperED FPL 53 APO optics (Made in Japan).
- Modern broadband multicoating
- Stable and well thought-out tube
- APM 2.5" ZTA extension 1:10 stepped, 360° rotatable
- Ideal for photographic and visual purposes
- Excellent price/performance ratio
Scope of delivery:- Optical tube 115/805mm with sliding dew cap.
- APM CNC tube clamps
- APM 2.5" ZTA extension 1:10 stepped, 360° rotatable
- APM Fast Lock reducing adapter 2" / 1¼"
- Mounting rail
- Vixen compatible
- Cover on both sides
- Carrying handle
- Transport case
- Tuning and interferometric test protocol from Wellenform
Products specifications
Coating
|
Multicoated |
Eyepiece adapter
|
to 2" and 1.25" |
Focal ratio
|
f/7 |
Lens
|
Triplet Apo with Super ED Element from Ohara FPL 53 |
Color
|
white |
Threads in tuberings
|
1/4 Zoll 3 x |
Viewfinder
|
Finder base, not finder included |
Focuser
|
2.5" APM Focuser with brass eyepiececlamp |
Tube material
|
Aluminium |
Type of telescope
|
3-element SuperED Apo Refractor |
Connection to eyepiece
|
63 mm thread, 2" and 1 1/4" with adapter |
Width of tuberings
|
2 Tuberings each 24 mm |
Distance of threads
|
centric and 60 mm |
Length of dewcap
|
230 mm |
Aperture
|
115 mm |
Focal length
|
805 mm |
Limit value
|
12.1 mag |
Resolution
|
1.00" |
Max. useful visual power
|
230 x |
Length during observing
|
707 mm |
Dewcap diameter
|
156 mm |
Tube weight
|
16,8 lb incl. Tuberings |
Transportation length
|
660 mm |
Tube diameter
|
116mm |
Backfokus
|
180 mm (from end of 2" adapter) |
Total weight
|
6.5Kg |
