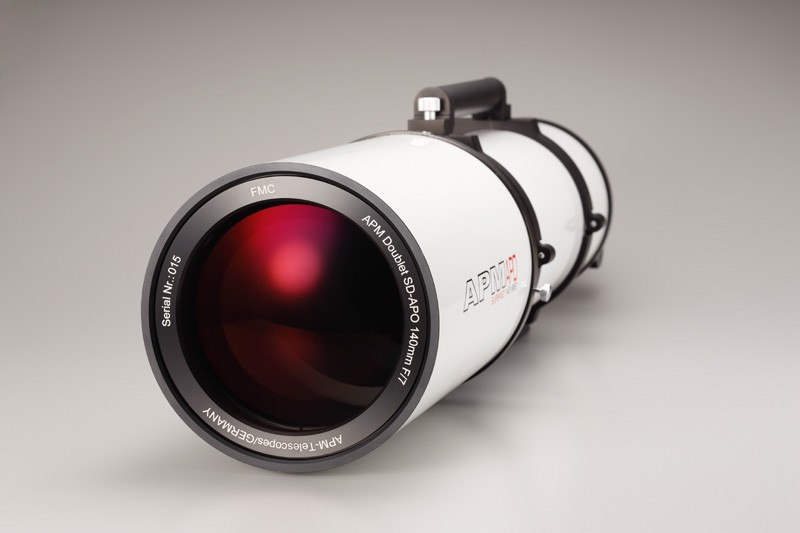

The APM Apochromat 140mm f/7 impresses with its high performance. We have succeeded in developing a telescope with high-quality optics and a solid tube at a previously unattainable price. The new 140mm - 980mm ED has doublet optics with SD FPL 53 glass. This new, innovative lens system leads to an optical performance that is far above the usual in this price category To guarantee the typical high quality of APM telescopes, every optic goes through an interferometric test at 532nm (green).
With its generous focal length of 980mm, the 140mm SD Apo is a real all-rounder. From observing close binary stars with high contrast to detailed planetary observations, a new group of enthusiasts will be amazed by the APM quality of this scope. The well-known APM quality has proven itself in all areas. The large 3.7" focuser with rack and pinion and 1:10 gear remains stable even under high loads and is suitable for astrophotography with large sensors. In addition, this new apo with only 9.8kg is quite lightweight and can be used on compact mounts.

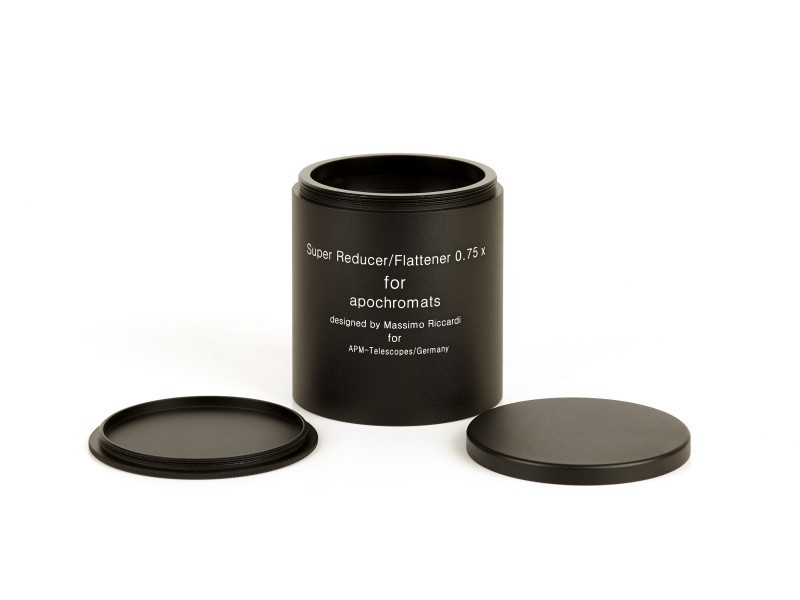

In this package we have included the 0.75x M63 APM Riccardi reducer / flattener for a focal ratio of f/5.25 at an image circle of 42mm. All needed adapters are included too.
The modern APM apochromatic SD refractor 140/980mm - Excellent performance at an incredibly attractive price!
Review (Cloudy Nights, english)
Characteristics:
- Modern optical design
- Excellent chromatic correction due to the use of FPL53 SD glass
- Large 5.5" aperture, fully usable for astrophotography
- Modern multi coatings
- Reliable OTA construction
- Selected accessories included
Delivery:
- OTA 140/980mm
- Tube rings with handle

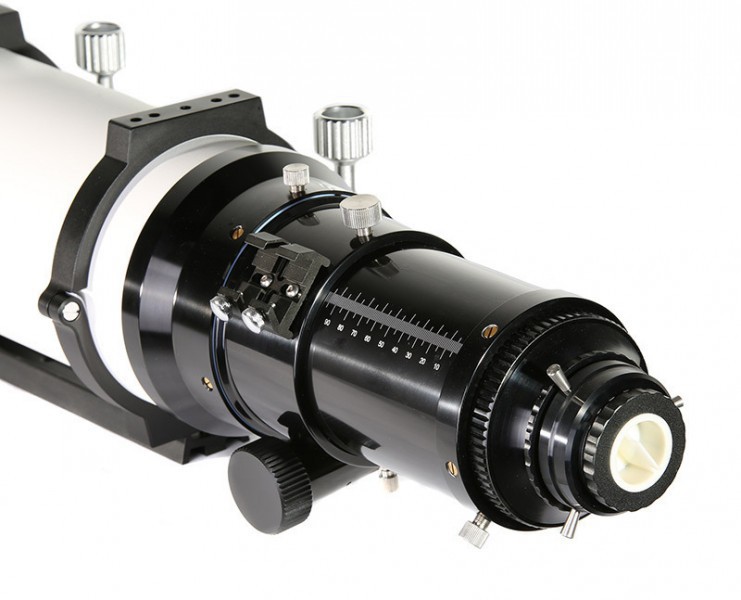

- 3.7" APM Rack & Pinion focuser with 1:10 gear
- APM Riccardi Reducer 0.75 M63
- Losmandy style dovetail
- APM-Tilt-adj-M63
- APM-RIRED-M63-small
- Adapter focuser to tilting-adapter
- Adapter Riccardi to M48 thread
- Adapter M48 to T2 thread
- finder bracket
- Packaging
Products specifications
| Coating | Multicoated |
| Viewfinder | none supplied |
| Connection to eyepiece | 2" |
| Tube material | Aluminium |
| Backfokus | 180 mm |
| Tube diameter | 152 mm |
| Length of dewcap | 290 mm |
| Color | black / white |
| Type of telescope | Doublet ED-Apochromat |
| Dewcap diameter | 186 mm |
| Lens | Doublet ED Apo with FPL-53 Element |
| Aperture | 140 mm |
| Focal length | 980 mm |
| Resolution | 0.83" |
| Limit value | 12.5 mag |
| Max. useful visual power | 280 x |
| Transportation length | 830 mm |
| Length during observing | 1030 mm |
| Focuser | 3.7" R&P Focuser, Rotation 360° |
| Total weight | 9.8Kg (with tuberings) |
| Focal ratio | f/7 und f/5,25 with Riccardi Reducer M63 |
