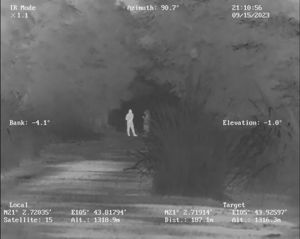

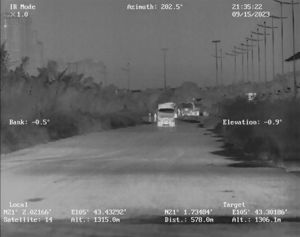

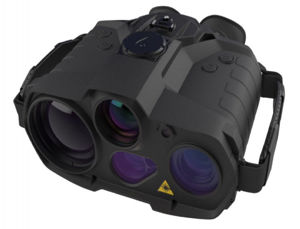

The MFB75 multi-function binocular is an intelligent observation device integrating infrared, low-light and visible light sensors. It has a laser pointer and laser range finder alongside GPS and a digital compass to provide quick and accurate target location. It is ideal for forward observation, border surveillace and target acquisition. The MFB75 also offers image fusion to allow for detailed images day or night. These images or videos can be stored onboard the device, all this in a device weighing less than 2kg.
Operation Distance | Infrared mode | Visible light mode |
Human(1.7*0.5m) | Discern Range | 850m | 3000m |
Detection Range | 1500m | 4500m |
Identify Range | 4500m | 8000m |
Car(2.3*2.3m) | Discern Range | 1000m | 5000m |
Detection Range | 2000m | 6000m |
Identify Range | 4000m | 10000m |
Products specifications
| Technical Data | Resolution | 640×512, 12µm | 800×600, 8µm | 2400×19202, 5.0 MP | Spectral Band | 8~14µm | 0.4~1.1µm 0.001lux | 0.4~0.63µm | FOV | 6.1°×4.8° | 6.8°×5.5° | 12.5°×10.0°~ 3.9°x 3.1° |
Infrared image mode | White Hot/ Black Hot/ Rainbow | Fusion image mode | Black and White Fusion/ Desert Fusion/ Jungle Fusion/ Ocean Fusion/ Urban Integration/ Snow Fusion | Visible light mode | Normal Mode/ Fog-through Mode | Laser Rangefinder | Eye safe: 1535nm Max Measuring Range: 5km (human) 6km (car) Measuring Accuracy: 2m | Location Module | Location Mode: GPS Horizontal Location Accuracy (CEP): 3m Elevation Location Accuracy (PE): 5m | Digital Magnetic Compass | Azimuth Measurement Range: 0°~360° Azimuth Measurement Accuracy: 0.2°(RMS) Pitch Angle Measurement Range: -90°~+90° Pitch Angle Measurement Accuracy:0.2°(RMS) Inclination Angle Measurement Range:-180°~+180° Inclination Angle Measurement Accuracy: 0.3°(RMS) | Laser Pointer | Wavelength: 830nm Power: 5mW Security levelClass IIIA | Display | 1280×1024 OLED | Storage | 64GB 10000 JPG & 4h AVI | Ocular Lens Diopter | -4~+4 | Weight | ≤2.0kg(With Battery) | Operating Time | ≥10h | Dimension | 198×210×105mm | Interface | External Power In/USB/PAL/RS232 HDMI WIFI | Operating Temperature | -40°~+55° | Storage Temperature | -55°~+70° | Protection Level | IP67 |
|
