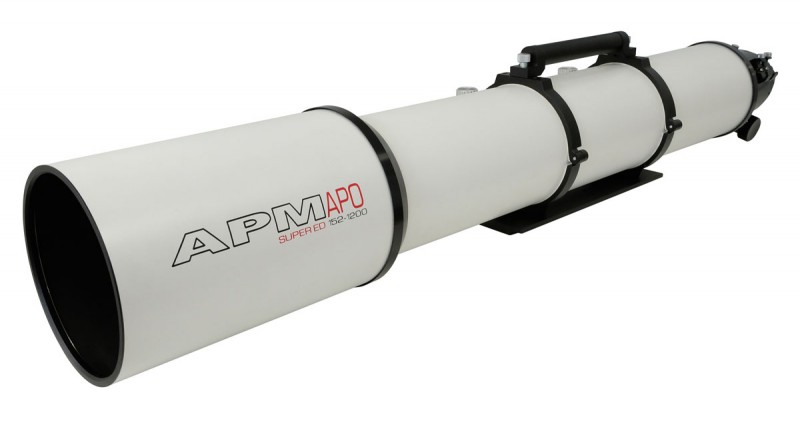

The classic 6" aperture (152mm) with a focal length of 1200mm is very popular and was launched by all well-known optics manufacturers worldwide. APM can deliver the very high-quality Triplet SuperED apochromats at short notice and at very attractive prices!
Our top-class ZTA focuser with 3.7" is used in this version. The tube is made of aluminum as standard. The weight is just over 14kg, which is remarkable for such an optics and is easy on the back.
The 6-incher is both visually and photographically a great scope that can be used universally. The focal ratio of f/7.9 allows a relatively "slim" optical design with rapid cooling as well as excellent chromatic and spherical correction. The 152mm diameter offers 2.5x more area than a 4" telescope and about 50% more area than a 5-inch device. Separate the tightest double stars with colored components, break them up into globular clusters and observe the finest details of planets a, high-contrast photography (i.e. with narrow band filters) or larger objects using a reducer are a pleasure.
In addition to the large 3.7" focuser, all the important reducing adapters are already integrated in order to conveniently connect both photographic and visual accessories. Tube rings are standard, as too viewfinder bracket.
A wonderful high-tech device that you can self-design!
Characteristics:
- High quality SuperED triplet design
- Excellent chromatic and field correction
- Modern broadband multicoatings
- Fast f/ratio for visual and especially photographic use
- Lightweight and optimized OTA
- High quality APM ZTA focuser with 1:10 gear
- Excellent price-performance ratio
Important note:
This
APM LZOS Telescope is manufactured individually for you, according to
your specifications. The features mentioned here are suggestions on our
part from already realized projects.
Due to the individuality of the production, it is not possible to use the right of withdrawal or cancel the order.
The
stated production times are expressly not a binding delivery date and
may vary due to various circumstances or legal requirements.
Delivery:
- Optical tube with APM LZOS SuperED triplet Apo 152/1200mm
- APM CNC tube rings
- 3.7" APM ZTA focuser with 1:10 gear, rotatable 360°
- APM Fast Lock Clamping reduction 2" / 1¼"
- APM 3" mounting plate
- Test certificate
- Protective caps
- Packaging
Products specifications
|
Limit value
|
12.7 mag |
|
Max. useful visual power
|
300 x |
|
Coating
|
Multicoated |
|
Eyepiece adapter
|
to 2" and 1.25" |
|
Color
|
white |
|
Threads in tuberings
|
1/4 Zoll 3 x |
|
Viewfinder
|
Finder base, not finder included |
|
Tube material
|
Aluminium |
|
Type of telescope
|
3-element SuperED Apo Refractor |
|
Lens
|
3-element SuperED |
|
Focal ratio
|
f/8 |
|
Included accessories
|
LZOS testreport, tube rings, dustcaps |
|
Connection to eyepiece
|
75 mm thread, 2" and 1 1/4" with adapter |
|
Focal length
|
1200 mm |
|
Aperture
|
152 mm |
|
Resolution
|
0.76" |
|
Width of tuberings
|
2 Tuberings each 24 mm |
|
Distance of threads
|
centric and 60 mm |
|
Dewcap diameter
|
188 mm |
|
Tube weight
|
31,9 lb incl. Tuberings |
|
Focuser
|
3.7" R&P Focuser, Rotation 360° |
|
Backfokus
|
180 mm (from end of 2" adapter) |
|
Tube diameter
|
156mm |
