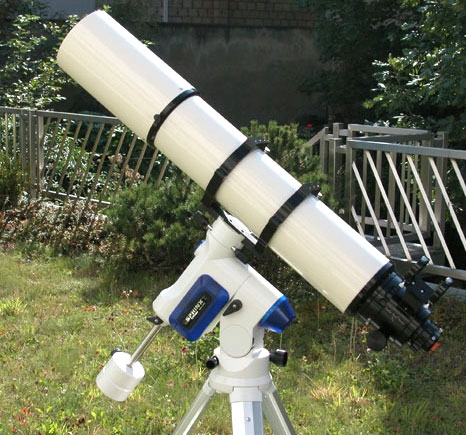

If you want to visually magnify higher or need a longer focal length for smaller celestial objects, you should take a look at the 130mm f / 9.2 triplet SuperED Apo from us.

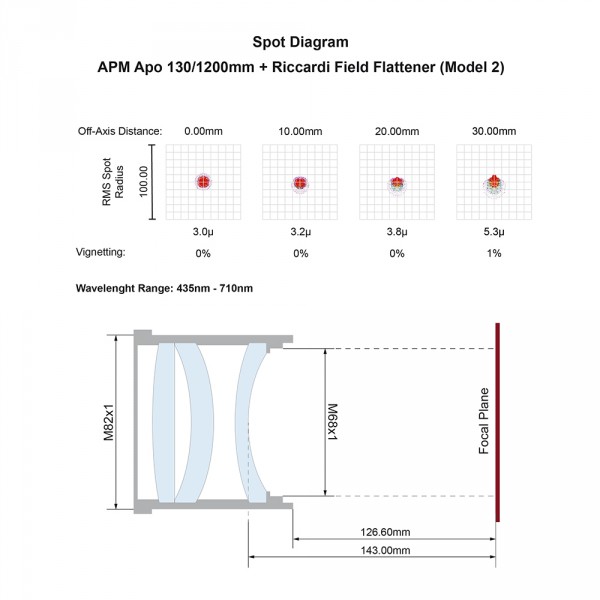

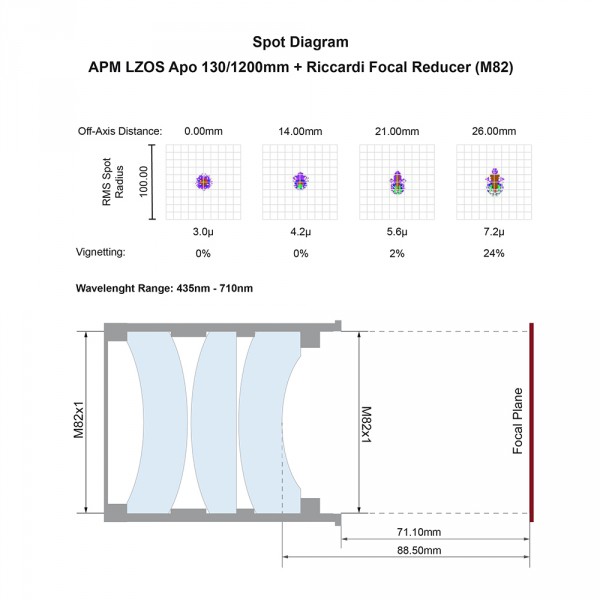

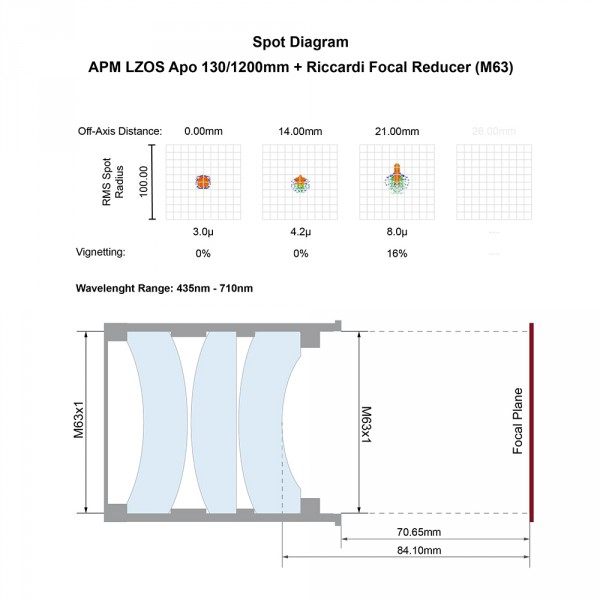

With a focal length of 1200mm you can already achieve high magnifications with a moderate focal length of the eyepiece, which e.g. the viewing position on the eyepiece is good for you! Since the radii of a longer system are not so extreme, this optic is ready for use more quickly because it cools down more quickly. The chromatic correction achieved is excellent and enables absolutely convincing contrast values! Binocular observations e.g. on the moon, Jupiter or Saturn (my favorite) become a pleasure! If the air is calm, this optics resolves so finely that you almost experience a "cinema feeling"! With a 130mm aperture you already have almost 70% more light collecting area than a 100mm device. The resolution is already improved by approx. 30%. The illumination is completely sufficient to be able to "operate" larger CCD sensors. Our specially manufactured reducers and correctors turn these optics into a high-performance photo machine!
Despite the massive construction of the tube and despite the thick 3.5 "extension, the weight of the tube is still moderate at approx. 11.4kg. The focuser is stable enough to e.g. to safely carry heavy photo equipment.
In terms of equipment, everything important is already included: Slidable dew cap, end cover, viewfinder bracket, CNC pipe clamps and the necessary visual adapters / reducers. Whether mobile or in your own observatory, this device is sure to be an eye-catcher!
Characteristics:

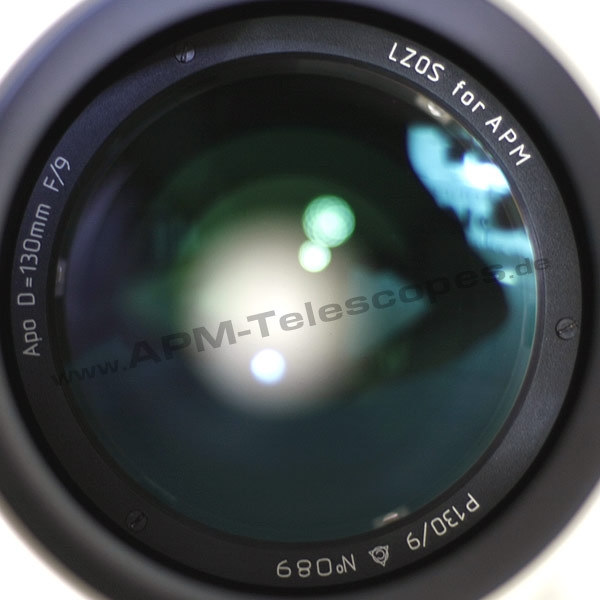

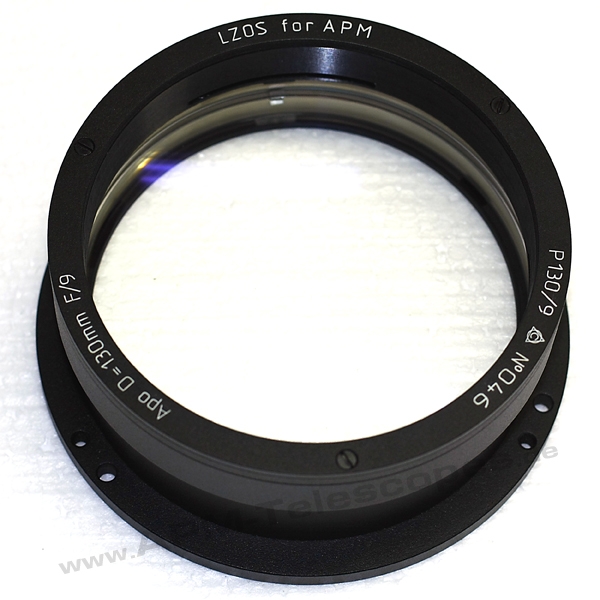

- High quality SuperED triplet design

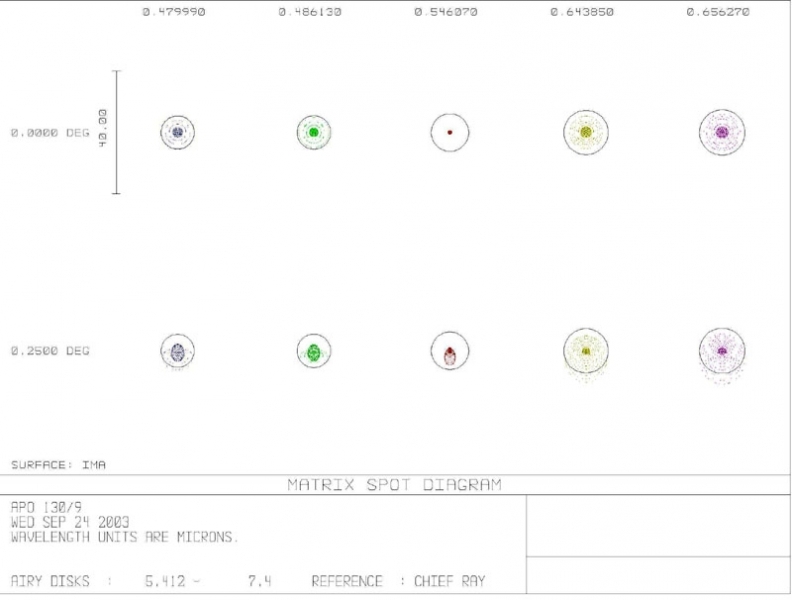

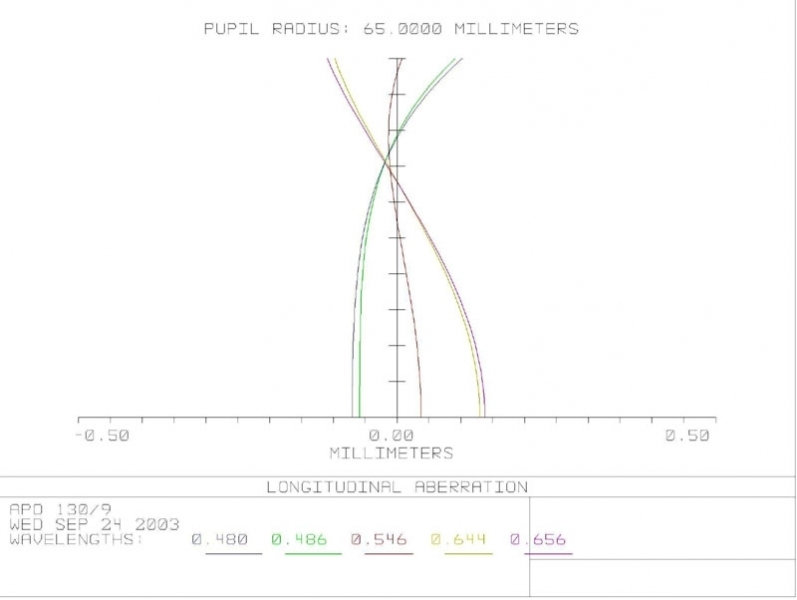

- Excellent chromatic and field correction
- Modern broadband multicoatings
- Fast f/ratio for visual and especially photographic use
- Lightweight and optimized OTA

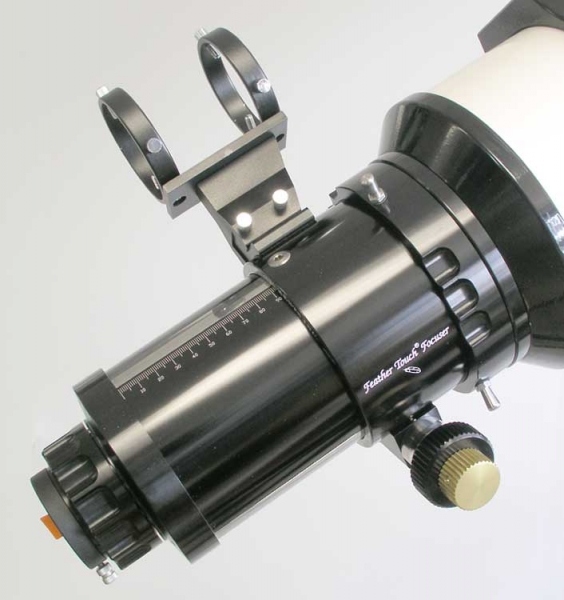

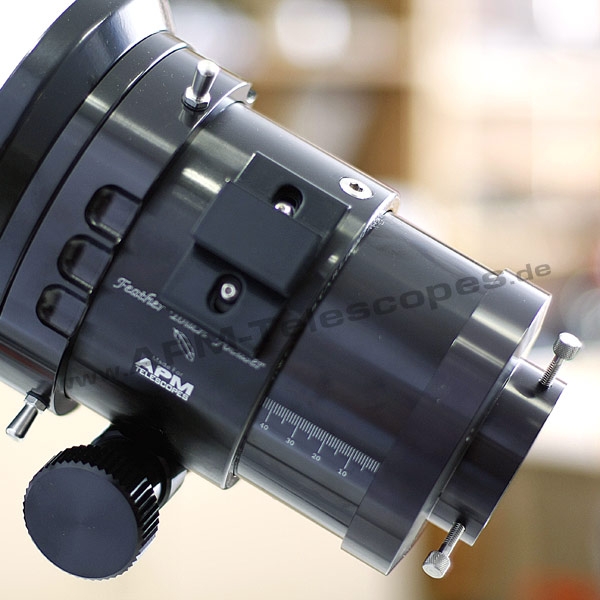

- Very high quality Starlight Instruments™ focuser with 1:10 gear
- Excellent price-performance ratio
Important note:
This
APM LZOS Telescope is manufactured individually for you, according to
your specifications. The features mentioned here are suggestions on our
part from already realized projects.
Due to the individuality of the production, it is not possible to use the right of withdrawal or cancel the order.
The
stated production times are expressly not a binding delivery date and
may vary due to various circumstances or legal requirements.
Delivery:

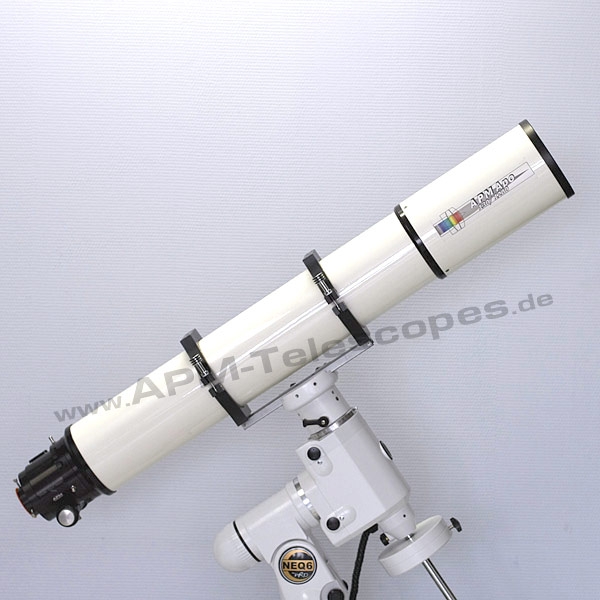

- CNC machined lightweight OTA 130/1200mm
- CNC tube rings
- 3.5" Starlight Instruments™ focuser 1:10 gear, rotatable
- 3.5" / 2" reduction
- 2" / 1¼" eyepiece adapter
- 2" sleeve 80mm
- Test certificate
- Protective caps
- Packaging
Products specifications
|
Coating
|
Multicoated |
|
Eyepiece adapter
|
to 2" and 1.25" |
|
Connection to eyepiece
|
to 2" and 1.25" with adapter |
|
Color
|
white |
|
Threads in tuberings
|
1/4 Zoll 3 x |
|
Tube material
|
Aluminium |
|
Type of telescope
|
3-element SuperED Apo Refractor |
|
Lens
|
3-element SuperED |
|
Aperture
|
130 mm |
|
Focal ratio
|
f/9.2 |
|
Focal length
|
1200 mm |
|
Resolution
|
0.88" |
|
Limit value
|
12.4 mag |
|
Max. useful visual power
|
260 x |
|
Backfokus
|
220 mm |
|
Focuser
|
3.5" Starlight Feather Touch, 360° rotatable |
|
Length of dewcap
|
290 mm |
|
Width of tuberings
|
2 Tuberings each 24 mm |
|
Distance of threads
|
centric and 60 mm |
|
Included accessories
|
Adaptor 3.5"/2" and 2"/1 1/4" with Brass Clamp, 2" Extension tube 80 mm, set of Tuberings, Testreport, 2 Covers |
|
Case
|
optional |
|
Viewfinder
|
Bracket for 50 mm Viewfinder, Viewfinder optional |
|
Tube diameter
|
145 mm |
|
Length during observing
|
1235 mm |
|
Dewcap diameter
|
175 mm |
|
Transportation length
|
Property Value |
|
Tube weight
|
24.2 lb incl. Tuberings |
