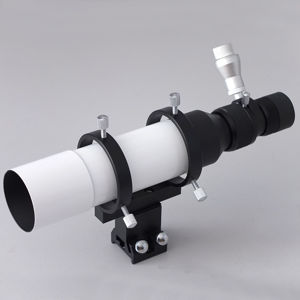

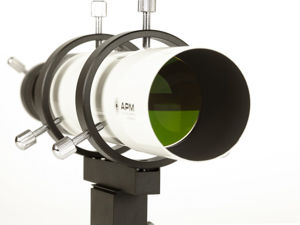

Our high-quality 50mm viewfinder with the new universal base and a wider contact surface. The "White Set" contains a 26mm crosshair eyepiece, providing a magnification of 8.5x. The illuminatiin unit is also included, the set is "ready to work". The scope is equipped with a precise 1.25" helical focuser. The optics are multi-coated.
Characteristics:
- High quality optics Ø 50mm
- APM 24mm crosshair eyepiece
- Reticle illumination included
- Multi-coated objective lens
- 1.25" helical focuser with brass clamping ring
- Focal length 205mm

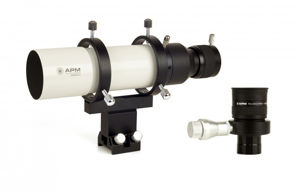

Delivery:
- Finderscope 50mm (white tube)
- APM 24mm crosshair eyepiece
- Reticle illumination unit
- Universal mounting base
Products specifications
|
Connection to eyepiece
|
1 1/4" |
|
Coating
|
Fully multicoated |
|
Housing material
|
Aluminium |
|
Magnification
|
8 x |
|
Aperture
|
50 mm |
|
Connection to telescope
|
Finderbracket with Quick Clamp |
|
Lenses
|
2 Lenses |
|
Optical design
|
Achromat |
|
Type of viewfinder
|
Straight View Finderscope |
|
Accessory
|
incl. Bracket and Quick Clamp |
|
Focal length
|
205 mm |
|
Length
|
250 mm |
|
Diameter
|
55 mm |
|
Weight
|
25.6 oz. |
