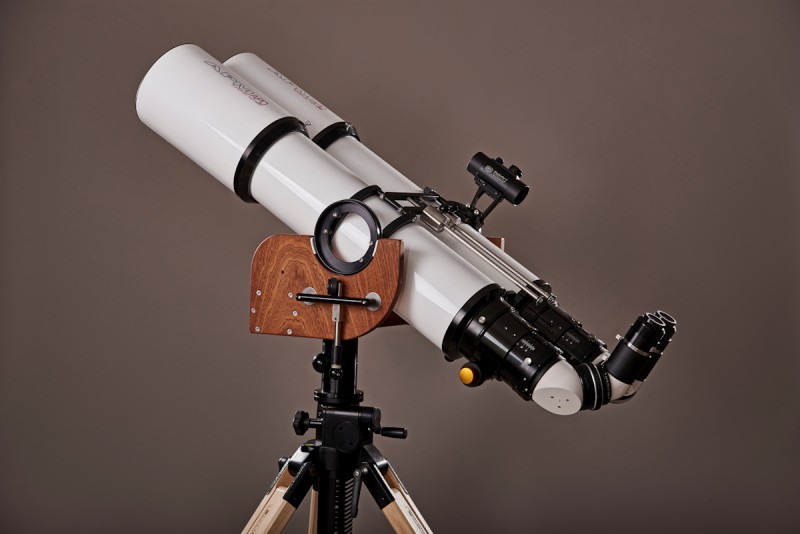

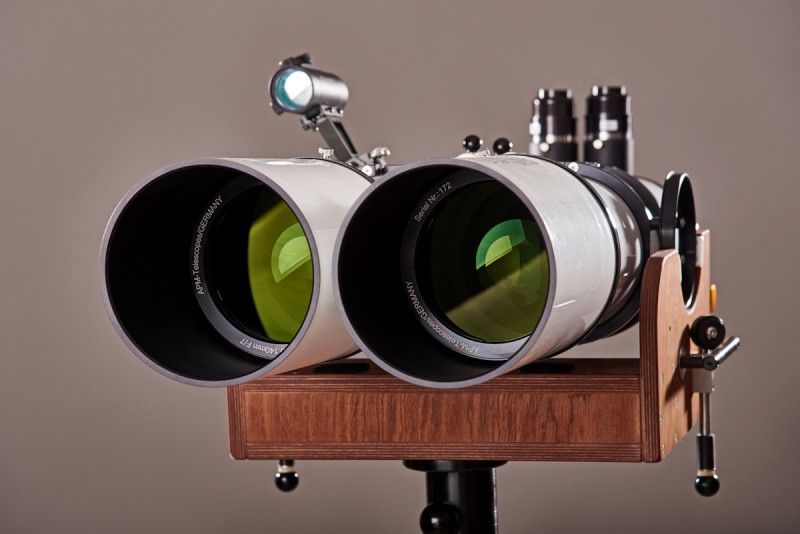

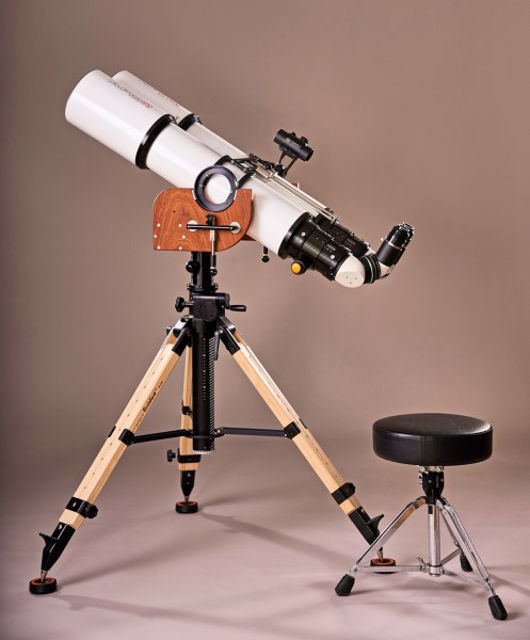

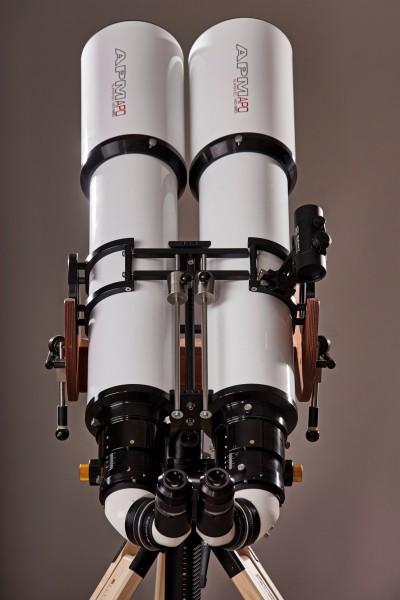

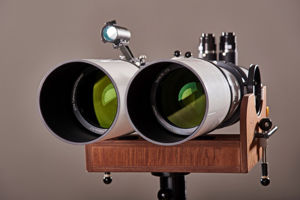

APM EMS SD-Apo Bino 140mm F/7 Telescope

APM EMS SD-Apo Bino 140mm F/7 Telescope

2x APM Doublet SD Apo 140 f / 7 FPL53 special optical tube for Bino application
Manufacturer : APM
SKU : apm-140bino
Price: 16990.00 € incl tax 19% (Germany)
Estimated delivery time : 2-5 months
Product description

Our 140mm large binoculars are real double telescopes. It consists of two high-quality, matched 140mm f/7 FPL53 apochromats, which are assembled and adjusted to one another. The advantage: Excellent magnification and excellent mechanical data. Every component has been tested, every optic is interferometrically checked, both sides are provided with a massive 3.7" focusers. The image eretion system for the eyepieces is one of the best available! All components are carefully manufactured and checked, so optimal performance is guaranteed.

This scope is aimed at the dedicated observer who does not want to compromise on binocular planetary observation or resolution. Even high magnifications are possible, which, together with the excellent color correction of the lenses, opens up completely new possibilities for observation. Wide-field observations are of course also realiszeable thanks to the 2" eyepiece holders. Filters to increase contrast, as well as nebula filters, can be used without restrictions!

Characteristics:

  • 2 primary lenses SD-Apo FPL53 doublet 140/980mm f/7
  • German test report of both lenses
  • Eyepiece connection for 1¼" and 2"
  • Extremely high quality image erection system (Matsumoto EMS UXL)
  • 2x 3.7"APM focuser
  • High quality, stable aluminum tube
  • Minimum eye relief 59mm
  • Specially designed fork mount
  • Extendable dew shield
  • APM fork mount for 150mm large binoculars (option)
  • Total weight including fork only 26kg

Characteristics:

  • APM double telescope 2x SD-Apo FPL53 doublet 140/980mm f/7
  • Matsumoto EMS UXL2 "Deluxe deflection unit (prisms / mirrors)
  • Wooden fork mount

Annotation: For safety reasons, this device is delivered on a pallet (possibly expensive). Collection by the customer is recommended, if possible.

Products specifications
Coating Multicoated
Connection to eyepiece 2" and 1.25" with adapter
Focal ratio f/7
Type of telescope Doublet ED-Apochromat
Lens Doublet ED Apo with FPL-53 Element
Focal length 980 mm
Focuser 2x 3" Feathertouch Focuser
Aperture 2x140mm
