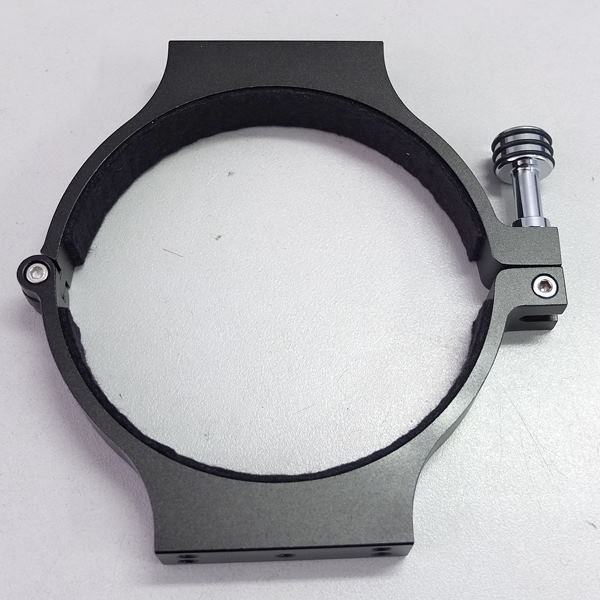

Our high-quality and solid CNC-manufactured tube rings made from aluminum . Tube diameters of 145mm - coated black.

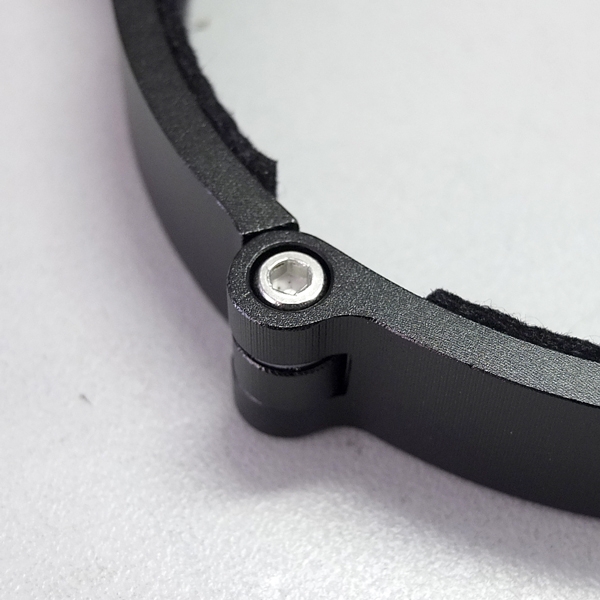

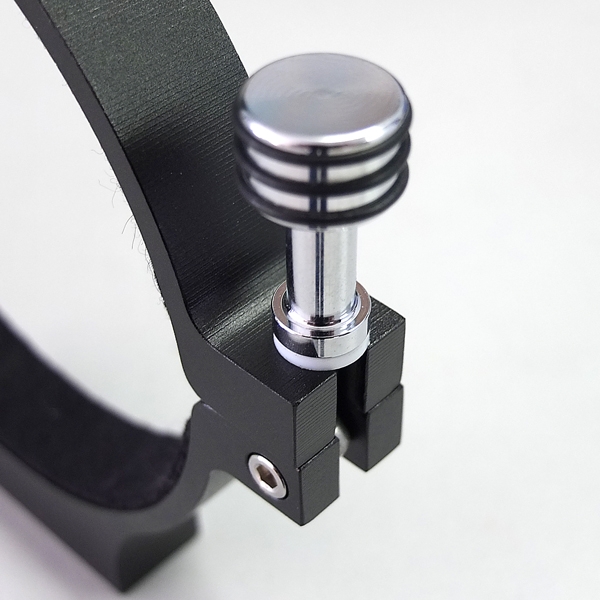

The tube rings have a stable joint on one side and open to the other side. The clamp is closed with a large chrome-plated knurled nut with rubber rings for a better grip.

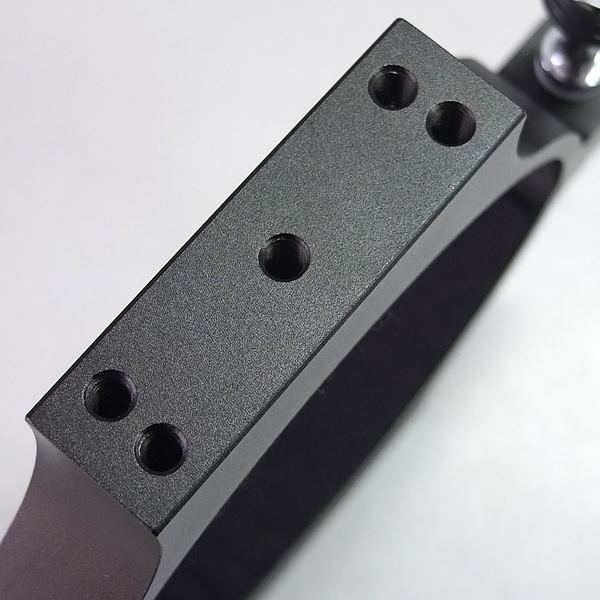

For mounting on a dovetail or directly on a mounting plate i.e., these tube rings have 2 surfaces at the top and bottom, each with 5x 1/4" photo thread holes. These also usable for other accessories such as guide scope rings.
Characteristics:
- Solid CNC milled quality
- Usable with 145mm OTA′s
- Plane supports on top and buttom
- On each support 5x 1/4" threads
Delivery:
- APM tube rings 145mm (1 pair)
Products specifications
|
Attachmentthread
|
on each Side 5 x 1/4" Foto Threads (Pairs 60 / 62 mm Distance and Center) |
|
Width
|
24 mm |
|
For tube diameter
|
145 mm |
|
Weight
|
ca. 28 oz. |
