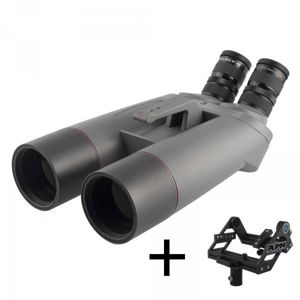

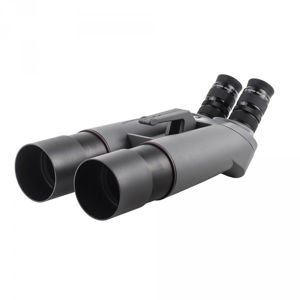

These spherically and chromatically very well corrected 2-lens FCD SD binoculars offes an extremely high contrast. The 45° viewing position and the 1.25" eyepiece sleeves make this glass very universally usable. The 45° variant can be used terrestrially as well as astronomically. In the basic supply we have included a set of our 18mm UF eyepieces, you can change the magnification by changing the eyepiece sets. The focus position was chosen so that TeleVue Delos, Nagler, Panoptik and the Docter 12.5mm UWA eyepiece can be focused. This model is also available with a 90° viewing position. In this equipment variant, we deliver our stable Fork binoculars mount, which enables mounting on a tripod and allows longer observation sessions.
Slidable dew shields with front cover, a handle with sighting device, a photo tripod adapter with 3/8 "thread connection and 2 eyepieces with 22x magnification are integrated. With the UF 24mm eyepieces, the magnification is i.e. 17x.
Delivery:
- 70mm FCD100 SD-Apo binoculars 45°
- 1 Set 24mm Ultra Flat Field eyepieces
- Transport handle with sighting device
- APM Fork binoculars mount
- Test report
- Objective lens hoods
- Eyepiece caps
Products specifications
| Front lens diameter | 70 mm |
| Photo tripod thread | With included Tripod Adapter 1/4" Thread |
| Focal length | 400mm |
| Objective angle of view | max. 4° FOV |
| Coating | all optical surfaces fully broadband multicoated |
| Features | Set 18 mm Ultra Flat Field eypieces (22x magnification) |
| Housing | Magnesium |
| Interpupillary Distanz (IPD) | 54 mm - 76 mm |
| diameter field stop | 28 mm |
| Focusing | 1.25" Helical Focuser with brass compression ring |
| Dew shields | extendable |
| Dew shield ID thread | M 77 x 1-6H, 3.8 mm depth |
| Waterproof | yes, nitrogen filled |
| Height | 125mm (measured from the mounting plate to the handle) |
| Dimensions | 375x210x120mm |
| Aperture | 2 Element Air spaced FCD Apochromat (rear lens FCD100 Glass) |
| Weight | 3.5Kg (only Bino)+4.8Kg (Mount) |
