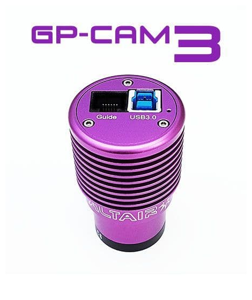

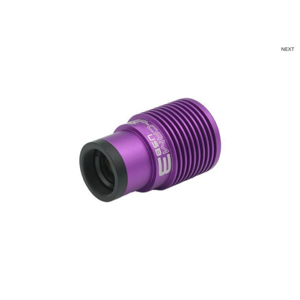

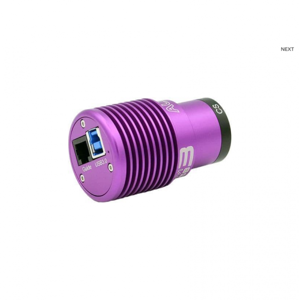

The Altair GPCAM3 462M has the highest
NIR sensitivity of any planetary camera in the range, as well as
extremely high sensitivity at 500nm green wavelengths.
This makes it an extremely capable planetary imaging, guiding or deep-sky video astronomy camera.
The full well capacity, high dynamic range, high sensitivity, and low
readout noise are characteristic of the latest CMOS technology.
Included software: The well featured intuitive AltairCapture software is included in a CD ROM, and can also be downloaded from www.altairastro.help.
AltairCapture is a stable 64 bit Windows application, which allows full
control of the camera in high speed video or still mode. It includes
extensive automation features, and supports all the major file formats
useful for astro imaging and professional scientific imaging in 14bit or
8bit mode.
Autoguiding: The camera
has an ST4 auto-guiding port, and can be used to auto-guide with mounts
from all the major manufacturers supporting ST4 format, including
iOptron, Celestron and Skywatcher. The sensor is more than sensitive
enough for autoguiding.
Scope of Delivery:
Products specifications
|
Power Supply
|
with USB |
|
QE
|
Peak 89 % |
|
Weight
|
70g |
|
Backfocus
|
17.5mm |
|
Pixel
|
2,1 MPx |
|
Pixel size
|
2.9µ x 2.9µ |
|
Connection to telescope
|
1.25" barrel with filter thread |
|
ADC
|
12bit |
|
Connections
|
USB 3.0 and USB 2.0 |
|
Sensor type
|
Sony IMX462 back illuminated sensor |
|
Horizonal Resolution
|
3840Px |
|
Vertical Resolution
|
2160Px |
|
Sensor size
|
5.57mm x 3.13mm |
|
Pixel fullwell capacity
|
11.8ke- |
|
Maximum exposure length
|
0.1ms ? 1000s |
