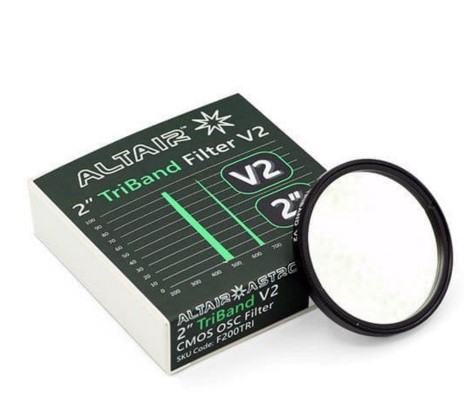

Altair 2" TriBand Filter V2 CMOS Optimised

Altair 2" TriBand Filter V2 CMOS Optimised

The new TriBand V2 Filter

  • Anti-Halo coating on both surfaces to reduce reflection artefacts from reducers and camera lenses.
  • Increased blocking of UV, IR and unwanted visual range wavelengths. UV OD7 (T0.00001%) Visual OD5 (T0.001%) and IR OD4 (T0.01%) for the ultimate in skyglow blocking. This is an order of magnitude better than foreign filters.
  • Higher transmission % of desired wavelengths Ttop 93% (Average 5% higher transmission of target wavelengths than V1). In general a 5% gain on foreign filters.
  • Ha at 14nm and Oiii at 34nm FWHM for with less tail-off to reduce unwanted light pollution, whilst keeping transmission high compared to the V1.

Manufacturer : Altair Astro
SKU : ALT-F200TRI-V2
Price: 143.00 € incl tax 19% (Germany)
159.00 €
Estimated delivery time : 1 week
Product description

Altair TriBand is the new trend in light pollution filters for deep-sky imaging of emission nebulae with colour CMOS, CCD, and DSLR cameras.

Altair V2 Filter Technology produces even better blocking of unwanted wavelengths, higher transmission, and no halos. The result is a better signal to noise ratio for imaging emission nebulae with a DSLR or CMOS Astro camera.

The passband not only makes the TriBand V2 compatible with fast focal ratio lenses and telescopes, but also allows visual use with a medium size telescope in urban locations. Brighter emission nebulae can be observed in urban conditions with a darker background.



Filter Specifications:

  • 1st band, CWL495nm FWHM 34nm
  • 2nd band, CWL 656nm FWHM 14nm
  • 1.85mm thick optical glass with 30 arc sec parallelism.
  • UVIR Block and Anti-Reflection Coating.
Scope of Delivery:
  • Altair 2" TriBand Filter V2 CMOS Optimised
Products specifications
Filter thread / size 2"
Type Bandpass
